Self-Replicator Competition?

Tezcatlipoca · Post by **Tezcatlipoca** » September 11th, 2014, 12:00 am

Anyone out there also actively building self-replicators in shapeloop? Let's pit them all against each other and see whose takes over!

c0b0p0 · Post by **c0b0p0** » September 14th, 2014, 10:01 pm

Here is a small loop in shapeloop.

Code: Select all

x = 11, y = 8, rule = shapeloop:T250,250
G2DC2DB2DCD$.A8HA$.DH2.2I3HA$.AH2.H5A$.AH2.HA$.AH2.HA$.C4HA$.2DADFA!

By the way, self-replicators in loop rules are normally called loops.

Tezcatlipoca · Post by **Tezcatlipoca** » September 19th, 2014, 8:19 pm

Thanks for sharing. It's been a couple days since I tried to pit it against some other patterns but if I remember correctly it self terminated after a number of generations. (I'd just check but I don't want to interrupt a pattern that's going). If you come upon more I'd love to see them. We need a shape loop "bestiary" like they have for the regular game of life!

pi_guy314 · Post by **pi_guy314** » September 19th, 2014, 11:02 pm

Here are 4 loops that can be used for a competition. You can use different bounding grid sizes to get different results.

Code: Select all

x = 184, y = 188, rule = shapeloop
87.B2DC2DC2D$87.D7HB$87.DH5.HD$87.CH5.HD$83.2DC2DH5.HA$83.B4H6.HA$83.
DH9.HA$83.D4H3.4HA$83.C2DADH.H5A$87.AH.HA$87.DH.HA$87.A3HA$87.DE3A76$
H$KDFDAD$.D3HA$.CH.HD169.2DC2D$.DH.HA169.B3HC$.DH.HDADAD165.DH.HD$.BH
2.4HA165.DH.HD$.DH5.HD161.DC2DCH.HB2D2A$.DH5.HA161.D4H3.4HA$.CH5.HD
161.BH9.HA$.DH5.HA161.D4H3.4HA$.DH5.HD161.DC2DCH.H5A$.AH5.HA165.DH.HA
$.DH5.HD165.DH.HA$.AH5.HD165.B3HA$.DH5.HC165.2DE2A$.AH5.HD$.D7HD$.ADA
DADADA74$86.ADADADAD$86.D6HA$86.AH4.HD$86.DH4.HD$82.2AEDAH4.HC$82.A3H
2I4.HD$82.A10HD$82.7ADC2DB!

I notice that the L-loop alone has a diverse mutations of other similar L-loops loops with different length and height.

Tezcatlipoca · Post by **Tezcatlipoca** » September 20th, 2014, 7:05 pm

Wow, these are great. Symmetry on both axes on one of those. Do you know how hard I have been trying to select for that naturally? It was a huge evolutionary step for us here in real life. It's not very stable though. I guess asymmetry in this system is rewarded because it is harder to exchange code with other asymmetric shapes. So an asymmetric shape makes more perfect copies more often and is rewarded. After 30 minutes something very interesting appeared as well. A reoccurring pattern that that codes for a shape with its gray "backbone" or scaffolding or whatever on the outside. It doesn't code for itself but the code and structure that makes it keeps getting passed on. It has a huge rate of success on interfacing with other extensions. It occurs on its own; i didn't select for it so it must provide might provide some advantage. interesting. I was wondering when we might see cheaters or viruses emerge in this system. I wonder if I select for it, what will happen.

c0b0p0 · Post by **c0b0p0** » September 21st, 2014, 10:08 pm

Tezcatlipoca wrote:Thanks for sharing. It's been a couple days since I tried to pit it against some other patterns but if I remember correctly it self terminated after a number of generations. (I'd just check but I don't want to interrupt a pattern that's going). If you come upon more I'd love to see them. We need a shape loop "bestiary" like they have for the regular game of life!

My loop may not seem impressive when run by itself, but when provoked by enough surrounding loops, it often takes over.

Code: Select all

x = 184, y = 188, rule = shapeloop:T300,300
87.B2DC2DC2D$87.D7HB$87.DH5.HD$87.CH5.HD$83.2DC2DH5.HA$83.B4H6.HA$83.
DH9.HA$83.D4H3.4HA$83.C2DADH.H5A$87.AH.HA$87.DH.HA$87.A3HA$87.DE3A64$
87.G2DC2DB2DCD$88.A8HA$88.DH2.2I3HA$88.AH2.H5A$88.AH2.HA$88.AH2.HA$
88.C4HA$88.2DADFA5$H$KDFDAD$.D3HA$.CH.HD169.2DC2D$.DH.HA169.B3HC$.DH.
HDADAD165.DH.HD$.BH2.4HA165.DH.HD$.DH5.HD161.DC2DCH.HB2D2A$.DH5.HA
161.D4H3.4HA$.CH5.HD161.BH9.HA$.DH5.HA161.D4H3.4HA$.DH5.HD161.DC2DCH.
H5A$.AH5.HA165.DH.HA$.DH5.HD165.DH.HA$.AH5.HD165.B3HA$.DH5.HC165.2DE
2A$.AH5.HD$.D7HD$.ADADADADA74$86.ADADADAD$86.D6HA$86.AH4.HD$86.DH4.HD
$82.2AEDAH4.HC$82.A3H2I4.HD$82.A10HD$82.7ADC2DB!

The loop is finally forced to make an explosive pattern by generation 4,444.

alexv · Post by **alexv** » September 22nd, 2014, 7:48 am

I got some problem with cut T:300,300.
Anyway, now the "competition" may be seen on YouTube for T:400,225
http://youtu.be/MGRPwuVvErs

Alexander

alexv · Post by **alexv** » September 22nd, 2014, 2:25 pm

The "movie" above shows only 10000 steps, but after that mutations are beginning and finally, after about
50 000 steps no one between initial 5 patterns survives and so it could be hardly treated
as competition. The survived loop is mutant:

Code: Select all

x = 16, y = 14, rule = shapeloop
4$2.DCDC2DB2D$2.D7HC$2.A4H2.HD$2.DADADH.HD$6.AH.HE$6.DH.HD$6.A3HA$6.D
ADAD!

On intermediate steps I observed yet another three kinds of mutants:

Code: Select all

x = 24, y = 18, rule = shapeloop
4$10.DB2DC$10.D3HD$10.CH.HA$10.DH.HA$6.B2DCDH.H5A$6.D3H2I2.4HA$6.D10H
JA$6.C2DADA2DADE2A!

Code: Select all

x = 13, y = 9, rule = shapeloop
DEDADADADADAD$D11HA$CH9.HD$DH6.4HA$DH5.HC2DAD$BH5.HD$DH5.HD$D7HA$CD2A
DADAD!

Code: Select all

x = 13, y = 15, rule = shapeloop
2$2.B2DCD$2.D3HD$2.DH.HE$2.CH.HD$2.DH.HADADA$2.AH2.4HA$2.DH5.HA$2.C7H
A$2.D2ADAD3A!

Alexander

bprentice · Post by **bprentice** » September 23rd, 2014, 9:08 am

Alexander,

Here is a detail from one of your examples:

Code: Select all

x = 59, y = 49, rule = shapeloop
44.DC2DF$7.J36.D3HD$4.DCDA36.BH.HA$4.A2HJ36.DH.HD$4.AH38.DH.HAD3A$4.D
H38.CH2.4HA$3ADAH16.DC2DF17.DH5.HA$A4H17.D3HD17.AH3.J2HA$AH20.BH.HA
17.DH3.DADA$A17H4.DH.HD17.CH3.J$ADADADF2DC2DB2DCDADADCDH.HA17.DH$18.C
4H2.HD17.AH$18.DH5.HA17.AH$18.A7HA17.DH$18.ADAD5A9.2DFDA3.AH$36.C3HD
3.DH$36.DH.HA3.AH$36.DH.HD3.AH$36.BH.H5A$36.DH2.4HA$36.DH5.HA$36.C7HD
$36.DADCD2ADA5.DC2DF$50.D3HD$10.DCDADC2DB31.BH.HA$10.A7HD31.DH.HD$10.
AH5.HD31.DH.HAD3A$10.D4H2.HC31.CH2.4HA$10.AD3AH.HD31.DH5.HA$14.AH.HD
31.AH3.J2HA$14.AH.HF31.DH3.DADA$14.A3HD31.CH3.J$14.ADADADAD7ADAD2ADCD
13.DH$19.17HA13.AH$35.HD13.AH$33.I2HC13.DH$33.DB2D13.AH$33.J16.DH$50.
AH$50.AH$42.ADAD5A$42.D7HA$42.FH5.HA$42.DH2.4HD$42.DH.HD2ADA$42.CH.HC
$42.DH.HD$42.D3HA$42.B2DCD!

Brian Prentice

alexv · Post by **alexv** » September 23rd, 2014, 1:12 pm

I suppose, it was from the "B-2 stealth" loop

Code: Select all

x = 13, y = 15, rule = shapeloop
2$2.B2DCD$2.D3HD$2.DH.HE$2.CH.HD$2.DH.HADADA$2.AH2.4HA$2.DH5.HA$2.C7H
A$2.D2ADAD3A!

I did not guess, that particular with this detail, but "stealth" indeed looked most "creative" for me,
e.g. simplification of loops is quite common, but this one may generate bigger loop:

Code: Select all

x = 22, y = 17, rule = shapeloop
4$2.DADADADADADADADA$2.E14HD$2.DH12.HA$2.DH9.4HC$2.CH8.HADA2D$2.DH8.H
D$2.DH8.HA$2.B10HD$2.2DCADADADADA!

Alexander

PS. To be more precise: if to set initial loop in position near (0,0) then after about ~23000 steps
near position (-270,-180) appears small colony of the bigger loops I mentioned, but they exist only
during ~2500 steps due to active interference with big amount of initial loops.

c0b0p0 · Post by **c0b0p0** » September 24th, 2014, 10:30 pm

alexv wrote:I got some problem with cut T:300,300.
Anyway, now the "competition" may be seen on YouTube for T:400,225
http://youtu.be/MGRPwuVvErs

Try running the pattern below.

Code: Select all

x = 346, y = 188, rule = shapeloop:T400,225
158.B2DC2DC2D$158.D7HB$158.DH5.HD$158.CH5.HD$154.2DC2DH5.HA$154.B4H6.
HA$154.DH9.HA$154.D4H3.4HA$154.C2DADH.H5A$158.AH.HA$158.DH.HA$158.A3H
A$158.DE3A64$158.G2DC2DB2DCD$H158.A8HA$KDFDAD153.DH2.2I3HA$.D3HA153.A
H2.H5A$.CH.HD153.AH2.HA$.DH.HA153.AH2.HA$.DH.HDADAD149.C4HA$.BH2.4HA
149.2DADFA$.DH5.HD$.DH5.HA$.CH5.HD$.DH5.HA$.DH5.HD$.AH5.HA$.DH5.HD$.A
H5.HD327.2DC2D$.DH5.HC327.B3HC$.AH5.HD327.DH.HD$.D7HD327.DH.HD$.ADADA
DADA323.DC2DCH.HB2D2A$333.D4H3.4HA$333.BH9.HA$333.D4H3.4HA$333.DC2DCH
.H5A$337.DH.HA$337.DH.HA$337.B3HA$337.2DE2A77$157.ADADADAD$157.D6HA$
157.AH4.HD$157.DH4.HD$153.2AEDAH4.HC$153.A3H2I4.HD$153.A10HD$153.7ADC
2DB!

During the competition a mutant loop appeared. Here is a competition between that loop and the other loops.

Code: Select all

x = 97, y = 127, rule = shapeloop:K400,225*
64.H$64.KDFDAD$65.D3HA$65.CH.HD$65.DH.HA$65.DH.HDADAD$65.BH2.4HA$65.D
H5.HD$65.DH5.HA$65.CH5.HD$65.DH5.HA$65.DH5.HD$65.AH5.HA$65.DH5.HD$65.
AH5.HD$65.DH5.HC$65.AH5.HD$65.D7HD$65.ADADADADA21$59.B2DC2DC2D$59.D7H
B$59.DH5.HD$59.CH5.HD$55.2DC2DH5.HA$55.B4H6.HA$55.DH9.HA$G2DC2DB2DCD
44.D4H3.4HA$.A8HA44.C2DADH.H5A$.DH2.2I3HA48.AH.HA$.AH2.H5A48.DH.HA$.A
H2.HA52.A3HA$.AH2.HA52.DE3A$.C4HA$.2DADFA23$81.KH$72.10A$72.A8HF$72.D
H2.2I3HD$72.CH2.H3ACA$72.D4HD$72.DBC2DA8$21.ADADADAD$21.D6HA$21.AH4.H
D$21.DH4.HD$17.2AEDAH4.HC$17.A3H2I4.HD$17.A10HD$17.7ADC2DB17$88.2DC2D
$88.B3HC$88.DH.HD$88.DH.HD$84.DC2DCH.HB2D2A$84.D4H3.4HA$84.BH9.HA$84.
D4H3.4HA$84.DC2DCH.H5A$88.DH.HA$88.DH.HA$88.B3HA$88.2DE2A!

As before, the survivor is a mutant, shown below.

Code: Select all

x = 6, y = 11, rule = shapeloop:K400,225*
B2DC$C2HD$DHIA$C2HA$BHI3A$CHI2HA$DH2JHA$A2H3A$DJHA$2ADF$G!

Including the mutant, the competition quickly terminates.

Code: Select all

x = 169, y = 127, rule = shapeloop:K400,225*
136.H$136.KDFDAD$137.D3HA$137.CH.HD$137.DH.HA$137.DH.HDADAD$137.BH2.
4HA$137.DH5.HD$137.DH5.HA$137.CH5.HD$137.DH5.HA$137.DH5.HD$137.AH5.HA
$137.DH5.HD$137.AH5.HD$137.DH5.HC$137.AH5.HD$137.D7HD$137.ADADADADA
21$131.B2DC2DC2D$131.D7HB$131.DH5.HD$131.CH5.HD$127.2DC2DH5.HA$B2DC
123.B4H6.HA$C2HD123.DH9.HA$DHIA123.D4H3.4HA$C2HA123.C2DADH.H5A$BHI3A
125.AH.HA$CHI2HA125.DH.HA$DH2JHA125.A3HA$A2H3A125.DE3A$DJHA$2ADF$G22$
153.KH$144.10A$144.A8HF$144.DH2.2I3HD$144.CH2.H3ACA$144.D4HD$144.DBC
2DA8$93.ADADADAD$93.D6HA$93.AH4.HD$93.DH4.HD$89.2AEDAH4.HC$89.A3H2I4.
HD$89.A10HD$89.7ADC2DB17$160.2DC2D$160.B3HC$160.DH.HD$160.DH.HD$156.D
C2DCH.HB2D2A$156.D4H3.4HA$156.BH9.HA$156.D4H3.4HA$156.DC2DCH.H5A$160.
DH.HA$160.DH.HA$160.B3HA$160.2DE2A!

alexv · Post by **alexv** » September 25th, 2014, 5:33 am

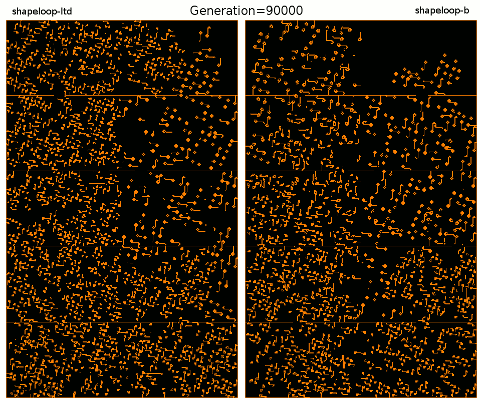

I think, for such competitions may be used bounded version of shapeloop rule

Code: Select all

@RULE shapeloop-b
1 wire
2 left signal
3 right signal
4 forward signal
5 trigger right
6 idle right
7 converter
8 lead
9 edge 1
10 edge 2
11 starter
12 tempdel
13 delall
14 boundary
@TABLE
n_states:15
neighborhood:Moore
symmetries:rotate4
var a={0,1,2,3,4,5,6,7,8,9,10,11,12,13,14}
var b={1,2,3,4,5,6}
var c={9,10}
var d={1,2,3,4,5,6,7,10,11}
var e={1,2,3,4,5,6,11}
var f={0,8,9,10,13}
var g={8,9,10}
var h={0,8,10}
var i={0,9}
var j={3,5,6}
var k={1,2,3,4,5,6,7,8,9,10,11}
var l={9,10}
var aa={a}
var ab={a}
var ac={a}
var ad={a}
var ae={a}
var af={a}
var ag={a}
var ba={b}
var bb={b}
var bc={b}
var bd={b}
var bd={b}
var ca={c}
var da={d}
var db={d}
var dc={d}
var dd={d}
var fa={f}
var fb={f}
var ga={g}
var gb={g}
var gc={g}
var la={l}
var b0={0,14}
#construct left
c,b0,a,8,b,2,b0,b0,b0,8
c,2,b,b0,f,fa,fb,b0,b0,4
c,b0,a,aa,8,8,b,4,b0,8
0,b0,2,c,f,fa,a,aa,ab,10
0,b,ba,b0,a,aa,ab,c,2,c
9,b,ba,b0,a,f,fa,4,bb,0
0,b0,c,2,ca,b0,a,aa,ab,8
0,4,f,fa,a,aa,ab,8,b,8
#construct right
c,f,fa,8,b,j,b0,b0,fb,4
c,j,b,h,a,aa,ab,b0,b0,h
8,a,aa,8,b,ba,j,c,ab,c
c,f,fa,8,b,ba,bb,4,fb,8
0,f,fa,c,j,b0,a,aa,ab,10
f,a,aa,fa,8,4,c,fb,ab,1
f,a,aa,h,8,8,4,fa,ab,9
#construct forward
c,b0,a,8,e,4,f,fa,fb,8
c,4,e,h,a,aa,ab,f,fa,h
c,4,e,b,a,aa,ab,f,fa,0
f,fa,c,4,ca,fb,a,aa,ab,1
f,a,h,c,4,fb,aa,ab,ac,c
f,fa,4,c,h,fb,a,aa,ab,c
#tempdel
12,a,aa,ab,ac,ad,ae,af,ag,0
#arm destruction
l,b,ba,bb,bc,b0,b0,g,bd,12
b,b0,b0,ba,bb,12,g,bc,b0,12
g,b,ba,12,b0,b0,a,aa,ab,12
b,b0,b0,12,b0,12,g,ba,b0,12
#square loop destruction
b,ba,bb,9,8,bc,b0,10,bd,13
#special lead transition
l,a,aa,la,b,ba,bb,8,ab,8
l,a,aa,8,b,ba,bb,la,ab,8
10,8,b,ba,bb,bc,bd,8,b0,8
#delete immunity
g,a,aa,ab,ac,1,b,b0,ad,g
g,1,a,aa,ab,ac,ad,8,b,g
b,g,a,aa,ab,ga,8,ba,b0,ba
#delete
k,13,a,aa,ab,ac,ad,ae,af,13
k,a,13,aa,ab,ac,ad,ae,af,13
k,a,aa,13,ab,ac,ad,ae,af,13
13,a,aa,ab,ac,ad,ae,af,ag,0
#trigger right
b,5,b0,b0,i,b0,b0,ba,g,6
#converter
0,b,ba,12,12,12,10,10,10,7
b,b0,b0,12,b0,ba,bb,10,10,7
b,ba,g,6,b0,7,a,b0,b0,5
7,5,b,b0,b0,b0,a,aa,b0,0
b,b0,a,7,b0,ba,8,6,b0,5
7,a,aa,b0,b0,b0,b,5,b0,0
0,b0,b0,b,ba,b0,b0,12,b0,7
b,b0,b0,12,b0,12,b0,ba,bb,7
11,b0,b0,12,b0,12,ba,bb,b0,7
#starter growth
1,b0,a,b,aa,8,8,11,b0,4
4,b0,a,b,aa,8,8,11,b0,1
#special signal movement
b,ba,bb,9,8,bc,b0,9,12,bc
b,ba,e,8,b0,bb,8,8,bc,ba
b,ba,8,b0,b0,bb,8,8,8,ba
b,b0,b0,e,8,ba,8,bb,b0,bb
b,b0,b0,ba,g,bb,g,bc,b0,bc
b,ba,9,bb,8,8,8,bc,9,ba
b,9,b0,ba,8,8,8,bb,bc,bb
#signal movement
b,ba,a,aa,ab,ac,ad,g,ae,ba
b,a,aa,ab,ac,g,ga,ba,ad,ba
b,a,aa,ab,ac,ad,g,ba,ae,ba
b,b0,a,aa,ab,ac,ad,g,ae,1
b,a,aa,ab,ac,g,ga,b0,ad,1
b,a,aa,ab,ac,ad,g,b0,ae,1
#arm obstruction detection
0,b0,d,a,aa,b0,g,1,ga,13
0,b0,a,d,aa,b0,g,1,ga,13
0,b0,a,aa,d,b0,g,1,ga,13
0,b0,d,a,aa,b0,1,g,b0,13
0,b0,a,aa,d,b0,b0,9,1,13
#starter
0,b0,b0,b0,b0,b0,i,b,5,11
0,11,b0,b0,b0,b0,b0,b0,6,8
0,b0,b0,b0,b0,b0,b0,8,11,9
0,b0,b0,b0,b0,b0,8,11,b0,1
1,b0,b0,b0,b0,9,8,11,b0,4
0,b0,b0,b0,b0,1,11,b0,b0,9
11,b0,b0,b,8,8,b0,6,ba,6
#boundary
14,a,aa,ab,ac,ad,ae,af,ag,14
@COLORS
0 0 0 0
1 255 128 0
2 255 0 0
3 0 255 0
4 0 0 255
5 0 190 0
6 0 140 0
7 255 255 255
8 80 80 80
9 95 95 95
10 128 128 128
11 0 64 0
12 224 224 0
13 240 240 0
14 64 48 48

for example:

Code: Select all

x = 470, y = 307, rule = shapeloop-b
470N$470N$470N$470N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N227.B2DC2DC2D225.4N$5N227.D7HB225.4N$5N227.DH5.HD
225.4N$5N227.CH5.HD225.4N$5N223.2DC2DH5.HA225.4N$5N223.B4H6.HA225.4N$
5N223.DH9.HA225.4N$5N223.D4H3.4HA225.4N$5N223.C2DADH.H5A225.4N$5N227.
AH.HA229.4N$5N227.DH.HA229.4N$5N227.A3HA229.4N$5N227.DE3A229.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N227.G2DC2DB2DCD223.4N$5N69.H158.A8HA223.4N
$5N69.KDFDAD153.DH2.2I3HA223.4N$5N70.D3HA153.AH2.H5A223.4N$5N70.CH.HD
153.AH2.HA227.4N$5N70.DH.HA153.AH2.HA227.4N$5N70.DH.HDADAD149.C4HA
227.4N$5N70.BH2.4HA149.2DADFA227.4N$5N70.DH5.HD382.4N$5N70.DH5.HA382.
4N$5N70.CH5.HD382.4N$5N70.DH5.HA382.4N$5N70.DH5.HD382.4N$5N70.AH5.HA
382.4N$5N70.DH5.HD382.4N$5N70.AH5.HD327.2DC2D50.4N$5N70.DH5.HC327.B3H
C50.4N$5N70.AH5.HD327.DH.HD50.4N$5N70.D7HD327.DH.HD50.4N$5N70.ADADADA
DA323.DC2DCH.HB2D2A46.4N$5N402.D4H3.4HA46.4N$5N402.BH9.HA46.4N$5N402.
D4H3.4HA46.4N$5N402.DC2DCH.H5A46.4N$5N406.DH.HA50.4N$5N406.DH.HA50.4N
$5N406.B3HA50.4N$5N406.2DE2A50.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N226.ADADADAD227.4N$5N
226.D6HA227.4N$5N226.AH4.HD227.4N$5N226.DH4.HD227.4N$5N222.2AEDAH4.HC
227.4N$5N222.A3H2I4.HD227.4N$5N222.A10HD227.4N$5N222.7ADC2DB227.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N
461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N
$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$5N461.4N$470N$470N$470N
$470N!

Alexander

c0b0p0 · Post by **c0b0p0** » September 25th, 2014, 9:17 pm

If one slightly modifies the boundary, a large loop appears just after the end of the competition, shown below.

Code: Select all

x = 14, y = 15, rule = shapeloop-b
2.A3DBA$2.D4HF$2.AH2.HDA2DC2A$2.AH3.6HA$2.AH8.HD$2.CH8.HA$A2DH7.2HD$D
2H7.HB2D$FH8.HA$AH8.HF$B6H3.HD$3DAD2AH2.HA$6.A4HD$6.D3ACD$6.G!

Post by **dvgrn** » September 25th, 2014, 10:54 pm

alexv wrote:I think, for such competitions may be used bounded version of shapeloop rule...

Oh, of course! Why didn't I think of that instead of going on about how slow Golly was at emulating bounded universes? This trick basically avoids most of the speed reduction of the bounded-universe implementation in Golly, while also allowing many new and interesting experiments, such as:

Code: Select all

#C competition in ten connected arenas
x = 925, y = 1510, rule = shapeloop-b
925N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.
N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$191N50.440N50.194N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$362N50.101N50.362N$
N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$49N50.727N50.
49N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.
N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$191N50.443N50.191N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N227.B2DC2DC2D225.N461.N$N227.D7HB225.N461.N$N
227.DH5.HD225.N461.N$N227.CH5.HD225.N461.N$N223.2DC2DH5.HA225.N461.N$
N223.B4H6.HA225.N461.N$N223.DH9.HA225.N461.N$N223.D4H3.4HA225.N461.N$
N223.C2DADH.H5A225.N461.N$N227.AH.HA229.N461.N$N227.DH.HA229.N461.N$N
227.A3HA229.N461.N$N227.DE3A229.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N227.G2DC2DB2DCD223.N
461.N$N69.H158.A8HA223.N461.N$N69.KDFDAD153.DH2.2I3HA223.N461.N$N70.D
3HA153.AH2.H5A223.N461.N$N70.CH.HD153.AH2.HA227.N461.N$N70.DH.HA153.A
H2.HA227.N461.N$N70.DH.HDADAD149.C4HA227.N461.N$N70.BH2.4HA149.2DADFA
227.N461.N$N70.DH5.HD844.N$N70.DH5.HA844.N$N70.CH5.HD844.N$N70.DH5.HA
844.N$N70.DH5.HD844.N$N70.AH5.HA844.N$N70.DH5.HD844.N$N70.AH5.HD327.
2DC2D512.N$N70.DH5.HC327.B3HC512.N$N70.AH5.HD327.DH.HD512.N$N70.D7HD
327.DH.HD512.N$N70.ADADADADA323.DC2DCH.HB2D2A508.N$N402.D4H3.4HA508.N
$N402.BH9.HA508.N$N402.D4H3.4HA508.N$N402.DC2DCH.H5A508.N$N406.DH.HA
512.N$N406.DH.HA512.N$N406.B3HA512.N$N406.2DE2A512.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N461.N461.N$
N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
226.ADADADAD227.N461.N$N226.D6HA227.N461.N$N226.AH4.HD227.N461.N$N
226.DH4.HD227.N461.N$N222.2AEDAH4.HC227.N461.N$N222.A3H2I4.HD227.N
461.N$N222.A10HD227.N461.N$N222.7ADC2DB227.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$925N!

The various ecological niches seem to give at least a little protection to whichever species arrives first, so after 190K ticks I can still see half a dozen species vying for supremacy in one arena or another -- and I only started with five species...!

alexv · Post by **alexv** » September 26th, 2014, 7:08 am

I only should mention, that maybe redefinition I used is an overkill, because it was enough to add new state
(boundary) without any change of rule. Instead of that I defined new items to treat boundary and empty
state in the same way ... but missed some entries with empty state defined as variables.
A complete (I hope) realization of such idea is

Code: Select all

@RULE shapeloop-ltd
1 wire
2 left signal
3 right signal
4 forward signal
5 trigger right
6 idle right
7 converter
8 lead
9 edge 1
10 edge 2
11 starter
12 tempdel
13 delall
14 boundary
@TABLE
n_states:15
neighborhood:Moore
symmetries:rotate4
var a={0,1,2,3,4,5,6,7,8,9,10,11,12,13,14}
var b={1,2,3,4,5,6}
var c={9,10}
var d={1,2,3,4,5,6,7,10,11}
var e={1,2,3,4,5,6,11}
var f={0,8,9,10,13}
var f0={0,8,9,10,13,14}
var g={8,9,10}
var h0={0,8,10,14}
var h={0,8,10}
var i0={0,9,14}
var i={0,9}
var j={3,5,6}
var k={1,2,3,4,5,6,7,8,9,10,11}
var l={9,10}
var aa={a}
var ab={a}
var ac={a}
var ad={a}
var ae={a}
var af={a}
var ag={a}
var ba={b}
var bb={b}
var bc={b}
var bd={b}
var bd={b}
var ca={c}
var da={d}
var db={d}
var dc={d}
var dd={d}
var fa={f}
var fb={f}
var ga={g}
var gb={g}
var gc={g}
var la={l}
var b0={0,14}
#construct left
c,b0,a,8,b,2,b0,b0,b0,8
c,2,b,b0,f0,fa,fb,b0,b0,4
c,b0,a,aa,8,8,b,4,b0,8
0,b0,2,c,f0,fa,a,aa,ab,10
0,b,ba,b0,a,aa,ab,c,2,c
9,b,ba,b0,a,f0,fa,4,bb,0
0,b0,c,2,ca,b0,a,aa,ab,8
0,4,f0,fa,a,aa,ab,8,b,8
#construct right
c,f0,fa,8,b,j,b0,b0,fb,4
c,j,b,h,a,aa,ab,b0,b0,h
c,j,b,14,a,aa,ab,b0,b0,0
8,a,aa,8,b,ba,j,c,ab,c
c,f0,fa,8,b,ba,bb,4,fb,8
0,f0,fa,c,j,b0,a,aa,ab,10
f,a,aa,fa,8,4,c,fb,ab,1
f,a,aa,h0,8,8,4,fa,ab,9
#construct forward
c,b0,a,8,e,4,f0,fa,fb,8
c,4,e,h,a,aa,ab,f0,fa,h
c,4,e,14,a,aa,ab,f0,fa,0
c,4,e,b,a,aa,ab,f0,fa,0
f,fa,c,4,ca,fb,a,aa,ab,1
f,a,h0,c,4,fb,aa,ab,ac,c
f,fa,4,c,h0,fb,a,aa,ab,c
#tempdel
12,a,aa,ab,ac,ad,ae,af,ag,0
#arm destruction
l,b,ba,bb,bc,b0,b0,g,bd,12
b,b0,b0,ba,bb,12,g,bc,b0,12
g,b,ba,12,b0,b0,a,aa,ab,12
b,b0,b0,12,b0,12,g,ba,b0,12
#square loop destruction
b,ba,bb,9,8,bc,b0,10,bd,13
#special lead transition
l,a,aa,la,b,ba,bb,8,ab,8
l,a,aa,8,b,ba,bb,la,ab,8
10,8,b,ba,bb,bc,bd,8,b0,8
#delete immunity
g,a,aa,ab,ac,1,b,b0,ad,g
g,1,a,aa,ab,ac,ad,8,b,g
b,g,a,aa,ab,ga,8,ba,b0,ba
#delete
k,13,a,aa,ab,ac,ad,ae,af,13
k,a,13,aa,ab,ac,ad,ae,af,13
k,a,aa,13,ab,ac,ad,ae,af,13
13,a,aa,ab,ac,ad,ae,af,ag,0
#trigger right
b,5,b0,b0,i0,b0,b0,ba,g,6
#converter
0,b,ba,12,12,12,10,10,10,7
b,b0,b0,12,b0,ba,bb,10,10,7
b,ba,g,6,b0,7,a,b0,b0,5
7,5,b,b0,b0,b0,a,aa,b0,0
b,b0,a,7,b0,ba,8,6,b0,5
7,a,aa,b0,b0,b0,b,5,b0,0
0,b0,b0,b,ba,b0,b0,12,b0,7
b,b0,b0,12,b0,12,b0,ba,bb,7
11,b0,b0,12,b0,12,ba,bb,b0,7
#starter growth
1,b0,a,b,aa,8,8,11,b0,4
4,b0,a,b,aa,8,8,11,b0,1
#special signal movement
b,ba,bb,9,8,bc,b0,9,12,bc
b,ba,e,8,b0,bb,8,8,bc,ba
b,ba,8,b0,b0,bb,8,8,8,ba
b,b0,b0,e,8,ba,8,bb,b0,bb
b,b0,b0,ba,g,bb,g,bc,b0,bc
b,ba,9,bb,8,8,8,bc,9,ba
b,9,b0,ba,8,8,8,bb,bc,bb
#signal movement
b,ba,a,aa,ab,ac,ad,g,ae,ba
b,a,aa,ab,ac,g,ga,ba,ad,ba
b,a,aa,ab,ac,ad,g,ba,ae,ba
b,b0,a,aa,ab,ac,ad,g,ae,1
b,a,aa,ab,ac,g,ga,b0,ad,1
b,a,aa,ab,ac,ad,g,b0,ae,1
#arm obstruction detection
0,b0,d,a,aa,b0,g,1,ga,13
0,b0,a,d,aa,b0,g,1,ga,13
0,b0,a,aa,d,b0,g,1,ga,13
0,b0,d,a,aa,b0,1,g,b0,13
0,b0,a,aa,d,b0,b0,9,1,13
#starter
0,b0,b0,b0,b0,b0,i0,b,5,11
0,11,b0,b0,b0,b0,b0,b0,6,8
0,b0,b0,b0,b0,b0,b0,8,11,9
0,b0,b0,b0,b0,b0,8,11,b0,1
1,b0,b0,b0,b0,9,8,11,b0,4
0,b0,b0,b0,b0,1,11,b0,b0,9
11,b0,b0,b,8,8,b0,6,ba,6
#boundary
14,a,aa,ab,ac,ad,ae,af,ag,14
@COLORS
0 0 0 0
1 255 128 0
2 255 0 0
3 0 255 0
4 0 0 255
5 0 190 0
6 0 140 0
7 255 255 255
8 80 80 80
9 95 95 95
10 128 128 128
11 0 64 0
12 224 224 0
13 240 240 0
14 64 48 48

yet looking briefly on evolution I did not mentioned change of behavior near boundary.

Alexander

alexv · Post by **alexv** » September 26th, 2014, 8:24 am

Comparing shapeloop-ltd and shapeloop-b for the same initial configuration on ten connected arenas, I found
that shapeloop-ltd produces less obstacles for distribution of loops:

: shapeloops2.gif (52.64 KiB) Viewed 21800 times

Post by **dvgrn** » September 26th, 2014, 8:48 am

I haven't quite figured out the change in boundary behavior between shapeloop-b and shapeloop-ltd, but (EDIT: as alexv has illustrated,) it definitely makes a difference to the sample 10-habitat ecological experiment I posted yesterday. The large loop species to the north now gets overtaken by the most competitive smaller loop right away, instead of having a chance to expand into new territory.

However, the new experiment turns out fairly interesting anyway -- by T=125000 there are still at least four species, including a new mutant that takes over the southeast corner. I suspect that one will outcompete everything else on the board eventually, unless an even more aggressive mutant comes along -- but it will take a while!

Code: Select all

x = 925, y = 1510, rule = shapeloop-ltd
925N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.
N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$191N50.440N50.194N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$362N50.101N50.362N$
N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$49N50.727N50.
49N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.
N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$191N50.443N50.191N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N227.B2DC2DC2D225.N461.N$N227.D7HB225.N461.N$N
227.DH5.HD225.N461.N$N227.CH5.HD225.N461.N$N223.2DC2DH5.HA225.N461.N$
N223.B4H6.HA225.N461.N$N223.DH9.HA225.N461.N$N223.D4H3.4HA225.N461.N$
N223.C2DADH.H5A225.N461.N$N227.AH.HA229.N461.N$N227.DH.HA229.N461.N$N
227.A3HA229.N461.N$N227.DE3A229.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N227.G2DC2DB2DCD223.N
461.N$N69.H158.A8HA223.N461.N$N69.KDFDAD153.DH2.2I3HA223.N461.N$N70.D
3HA153.AH2.H5A223.N461.N$N70.CH.HD153.AH2.HA227.N461.N$N70.DH.HA153.A
H2.HA227.N461.N$N70.DH.HDADAD149.C4HA227.N461.N$N70.BH2.4HA149.2DADFA
227.N461.N$N70.DH5.HD844.N$N70.DH5.HA844.N$N70.CH5.HD844.N$N70.DH5.HA
844.N$N70.DH5.HD844.N$N70.AH5.HA844.N$N70.DH5.HD844.N$N70.AH5.HD327.
2DC2D512.N$N70.DH5.HC327.B3HC512.N$N70.AH5.HD327.DH.HD512.N$N70.D7HD
327.DH.HD512.N$N70.ADADADADA323.DC2DCH.HB2D2A508.N$N402.D4H3.4HA508.N
$N402.BH9.HA508.N$N402.D4H3.4HA508.N$N402.DC2DCH.H5A508.N$N406.DH.HA
512.N$N406.DH.HA512.N$N406.B3HA512.N$N406.2DE2A512.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N461.N461.N$
N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
226.ADADADAD227.N461.N$N226.D6HA227.N461.N$N226.AH4.HD227.N461.N$N
226.DH4.HD227.N461.N$N222.2AEDAH4.HC227.N461.N$N222.A3H2I4.HD227.N
461.N$N222.A10HD227.N461.N$N222.7ADC2DB227.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$925N!

alexv · Post by **alexv** » September 26th, 2014, 9:05 am

Yes, I used the same ecological experiment in the pictures above. Formally, shapeloop-ltd should have
less sensitivity to presence of boundary because ruletable may not distinguish that from empty cell,
but shapeloop-b for some configuration may do that. Why it may produce advantages for bigger loop?
Almost no ideas.

Post by **dvgrn** » September 26th, 2014, 9:21 am

alexv wrote:Yes, I used the same ecological experiment in the pictures above. Formally, shapeloop-ltd should have
less sensitivity to presence of boundary because ruletable may not distinguish that from empty cell,
but shapeloop-b for some configuration may do that. Why it may produce advantages for bigger loop?
Almost no ideas.

Probably just bad luck for the shapeloop-ltd northern species.

We could try, say, a hundred experiments in shapeloop-ltd and shapeloop-b (and whatever other minor variants we can come up with) with the initial position of that loop moved (-5..4,-5..4). It might well turn out that there's not much statistical difference between the two rules as far as average survivability is concerned.

In the original shapeloop-b pattern, I had to randomly adjust the locations of the gaps between habitats for a while. Eventually I happened to get the behavior I wanted, where two of the bigger less competitive species managed to escape into a new habitat before the most aggressive loop took over the initial southwest habitat completely. So it really wasn't just random chance that the big ones were placed to escape into empty habitats in shapeloop-b; most likely we could do a similar placement for shapeloop-ltd.

alexv · Post by **alexv** » September 26th, 2014, 9:30 am

BTW, I have checked minimal modification of initial rule I mentioned earlier, i.e.

Code: Select all

@RULE shapeloop-a
1 wire
2 left signal
3 right signal
4 forward signal
5 trigger right
6 idle right
7 converter
8 lead
9 edge 1
10 edge 2
11 starter
12 tempdel
13 delall
@TABLE
n_states:15
neighborhood:Moore
symmetries:rotate4
Var a={0,1,2,3,4,5,6,7,8,9,10,11,12,13}
Var b={1,2,3,4,5,6}
var c={9,10}
var d={1,2,3,4,5,6,7,10,11}
var e={1,2,3,4,5,6,11}
var f={0,8,9,10,13}
var g={8,9,10}
var h={0,8,10}
var i={0,9}
var j={3,5,6}
var k={1,2,3,4,5,6,7,8,9,10,11}
var l={9,10}
var aa={a}
var ab={a}
var ac={a}
var ad={a}
var ae={a}
var af={a}
var ag={a}
var ba={b}
var bb={b}
var bc={b}
var bd={b}
var bd={b}
var ca={c}
var da={d}
var db={d}
var dc={d}
var dd={d}
var fa={f}
var fb={f}
var ga={g}
var gb={g}
var gc={g}
var la={l}
#construct left
c,0,a,8,b,2,0,0,0,8
c,2,b,0,f,fa,fb,0,0,4
c,0,a,aa,8,8,b,4,0,8
0,0,2,c,f,fa,a,aa,ab,10
0,b,ba,0,a,aa,ab,c,2,c
9,b,ba,0,a,f,fa,4,bb,0
0,0,c,2,ca,0,a,aa,ab,8
0,4,f,fa,a,aa,ab,8,b,8
#construct right
c,f,fa,8,b,j,0,0,fb,4
c,j,b,h,a,aa,ab,0,0,h
8,a,aa,8,b,ba,j,c,ab,c
c,f,fa,8,b,ba,bb,4,fb,8
0,f,fa,c,j,0,a,aa,ab,10
f,a,aa,fa,8,4,c,fb,ab,1
f,a,aa,h,8,8,4,fa,ab,9
#construct forward
c,0,a,8,e,4,f,fa,fb,8
c,4,e,h,a,aa,ab,f,fa,h
c,4,e,b,a,aa,ab,f,fa,0
f,fa,c,4,ca,fb,a,aa,ab,1
f,a,h,c,4,fb,aa,ab,ac,c
f,fa,4,c,h,fb,a,aa,ab,c
#tempdel
12,a,aa,ab,ac,ad,ae,af,ag,0
#arm destruction
l,b,ba,bb,bc,0,0,g,bd,12
b,0,0,ba,bb,12,g,bc,0,12
g,b,ba,12,0,0,a,aa,ab,12
b,0,0,12,0,12,g,ba,0,12
#square loop destruction
b,ba,bb,9,8,bc,0,10,bd,13
#special lead transition
l,a,aa,la,b,ba,bb,8,ab,8
l,a,aa,8,b,ba,bb,la,ab,8
10,8,b,ba,bb,bc,bd,8,0,8
#delete immunity
g,a,aa,ab,ac,1,b,0,ad,g
g,1,a,aa,ab,ac,ad,8,b,g
b,g,a,aa,ab,ga,8,ba,0,ba
#delete
k,13,a,aa,ab,ac,ad,ae,af,13
k,a,13,aa,ab,ac,ad,ae,af,13
k,a,aa,13,ab,ac,ad,ae,af,13
13,a,aa,ab,ac,ad,ae,af,ag,0
#trigger right
b,5,0,0,i,0,0,ba,g,6
#converter
0,b,ba,12,12,12,10,10,10,7
b,0,0,12,0,ba,bb,10,10,7
b,ba,g,6,0,7,a,0,0,5
7,5,b,0,0,0,a,aa,0,0
b,0,a,7,0,ba,8,6,0,5
7,a,aa,0,0,0,b,5,0,0
0,0,0,b,ba,0,0,12,0,7
b,0,0,12,0,12,0,ba,bb,7
11,0,0,12,0,12,ba,bb,0,7
#starter growth
1,0,a,b,aa,8,8,11,0,4
4,0,a,b,aa,8,8,11,0,1
#special signal movement
b,ba,bb,9,8,bc,0,9,12,bc
b,ba,e,8,0,bb,8,8,bc,ba
b,ba,8,0,0,bb,8,8,8,ba
b,0,0,e,8,ba,8,bb,0,bb
b,0,0,ba,g,bb,g,bc,0,bc
b,ba,9,bb,8,8,8,bc,9,ba
b,9,0,ba,8,8,8,bb,bc,bb
#signal movement
b,ba,a,aa,ab,ac,ad,g,ae,ba
b,a,aa,ab,ac,g,ga,ba,ad,ba
b,a,aa,ab,ac,ad,g,ba,ae,ba
b,0,a,aa,ab,ac,ad,g,ae,1
b,a,aa,ab,ac,g,ga,0,ad,1
b,a,aa,ab,ac,ad,g,0,ae,1
#arm obstruction detection
0,0,d,a,aa,0,g,1,ga,13
0,0,a,d,aa,0,g,1,ga,13
0,0,a,aa,d,0,g,1,ga,13
0,0,d,a,aa,0,1,g,0,13
0,0,a,aa,d,0,0,9,1,13
#starter
0,0,0,0,0,0,i,b,5,11
0,11,0,0,0,0,0,0,6,8
0,0,0,0,0,0,0,8,11,9
0,0,0,0,0,0,8,11,0,1
1,0,0,0,0,9,8,11,0,4
0,0,0,0,0,1,11,0,0,9
11,0,0,b,8,8,0,6,ba,6
@COLORS
0 0 0 0
1 255 128 0
2 255 0 0
3 0 255 0
4 0 0 255
5 0 190 0
6 0 140 0
7 255 255 255
8 80 80 80
9 95 95 95
10 128 128 128
11 0 64 0

It indeed produces slightly slower distribution even in comparison with shapeloop-b. For example for generation
90000 only cross-shaped loops enter the last arena.

Post by **dvgrn** » September 26th, 2014, 11:42 am

Okay, my entry for the self-replicator competition is the tiny loop that happened to evolve after 100K ticks, in the southeast corner of my trial shapeloop-ltd arena. I think I'll call it a "SquareL":

Code: Select all

#C sample wild SquareL collected from shapeloop-ltd experiment
x = 10, y = 13, rule = shapeloop-ltd
2$2.6A$2.A4HA$2.AH2.HE$2.AH2.HD$2.A2HIHA$2.DCDIHC$4.DIHA$4.B2HA$4.C2H
A$4.2DAD!

It seems equally happy in shapeloop-a, and most likely shapeloop-b and other variants as well. It's not even a competition with the original loops -- they're immediately overwhelmed:

Code: Select all

x = 925, y = 1510, rule = shapeloop-a
925N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.
N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$191N50.440N50.194N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$362N50.101N50.362N$
N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$49N50.727N50.
49N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.
N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$191N50.443N50.191N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N399.6A56.N461.
N$N399.A4HA56.N461.N$N399.AH2.HE56.N461.N$N227.C2DC2DB2D163.AH2.HD56.
N461.N$N227.D7HC163.A2HIHA56.N461.N$N227.DH5.HD163.DCDIHC56.N461.N$N
227.BH5.HD165.DIHA56.N461.N$N223.2DC2DH5.HC165.B2HA56.N461.N$N223.A4H
6.HD165.C2HA56.N461.N$N223.DH9.HD165.2DAD56.N461.N$N223.A4H3.4HB225.N
461.N$N223.DADFAH.H3A2D225.N461.N$N227.AH.HA229.N461.N$N227.AH.HA229.
N461.N$N227.A3HA229.N461.N$N227.5A229.N461.N$N226.HA233.N461.N$N226.H
A233.N461.N$N226.HA233.N461.N$N226.HA233.N461.N$N226.HF233.N461.N$N
226.HD233.N461.N$N226.HA233.N461.N$N226.HD233.N461.N$N226.HA233.N461.
N$N226.HD233.N461.N$N226.HA233.N461.N$N226.HD233.N461.N$N226.HA233.N
461.N$N226.HD233.N461.N$N226.HA233.N461.N$N226.HD233.N461.N$N226.HA
233.N461.N$N226.HD233.N461.N$N226.IAI232.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N236.IAI222.N461.N$N237.AH222.N461.N$N237.DH222.N461.N$
N237.AH222.N461.N$N237.DH222.N461.N$N237.AH222.N461.N$N237.DH222.N
461.N$N237.AH222.N461.N$N237.DH222.N461.N$N237.AH222.N461.N$N237.DH
222.N461.N$N237.FH222.N461.N$N237.AH222.N461.N$N228.10A223.N461.N$N
50.I19H158.D8HA223.N461.N$N50.2ADADADADADADADF2DC3DC2D153.CH2.2I3HF
223.N461.N$N50.I19.B3HF153.DH2.HC2DAD223.N461.N$N70.DH.HD153.DH2.HA
227.N461.N$N70.DH.HA153.BH2.HA227.N461.N$N70.CH.HDADAD149.D4HA227.N
461.N$N70.DH2.4HA149.DC2DAD227.N461.N$N70.DH5.HD844.N$N70.AH5.HA844.N
$N70.DH5.HD844.N$N70.AH5.HA844.N$N70.DH5.HD844.N$N70.AH5.HA844.N$N70.
DH5.HD844.N$N70.AH5.HA327.2DC2D512.N$N70.DH5.HD327.C3HB512.N$N70.AH5.
HA327.DH.HD512.N$N70.D7HD327.DH.HD512.N$N70.ADADA2DCD323.DC2DBH.HC2DC
D508.N$N402.D4H3.4HD508.N$N402.CH9.HB508.N$N402.D4H3.4HD508.N$N402.DB
2DFH.H4AD508.N$N406.AH.HA512.N$N406.AH.HA512.N$N406.A3HA512.N$N406.5A
512.N$N405.HA516.N$N405.HA516.N$N405.HA516.N$N405.HF516.N$N405.HD516.
N$N405.HA516.N$N405.HD516.N$N405.HA516.N$N405.HD516.N$N405.HA516.N$N
405.HD516.N$N405.HA516.N$N405.HD516.N$N405.HA516.N$N405.HD516.N$N405.
HA516.N$N405.HD516.N$N405.HA516.N$N405.IAI515.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N209.I16H235.N461.N
$N209.DADADF11AD7A227.N461.N$N209.I16.C6HA227.N461.N$N226.DH4.HA227.N
461.N$N226.DH4.HA227.N461.N$N222.DC2DBH4.HA227.N461.N$N222.D3H2I4.HF
227.N461.N$N222.A10HD227.N461.N$N222.DADADADADADA227.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
49.DB2DCD2A404.N461.N$N49.D6HA404.N461.N$N49.CH4.HA404.N461.N$N49.D4H
IHA404.N461.N$N49.D3ACIHA404.N461.N$N48.HD3.D2HA404.N461.N$N48.HC3.D
2HA404.N461.N$N48.HD3.A2HA404.N461.N$N48.HD3.DF2A404.N461.N$N48.HB
411.N461.N$N48.HD411.N461.N$N48.HD411.N461.N$N48.HC411.N461.N$N48.HD
411.N461.N$N48.HA411.N461.N$N48.HA411.N461.N$N48.HA411.N461.N$N48.HA
411.N461.N$N48.HA411.N461.N$N48.HA411.N461.N$N47.IHA411.N461.N$N47.3A
411.N461.N$N47.J413.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$925N!

It's nice that the Shapeloop rule supports such a wide variety of loop replication geometries -- you can often tell from a very large-scale view which loop type has taken over a given habitat. Certainly that's true for this little loop; it packs a lot more living copies into a given space than the original loops could manage, so you can see the spreading plague of SquareLs instantly.

[I haven't had time to look back through the other threads -- has this little critter showed up elsewhere, and does it already have a name?]

alexv · Post by **alexv** » September 26th, 2014, 1:03 pm

It's happen I forgot turn off Golly and suddenly found pattern with 400K+ generations and two mutants
on a background window. I started competition between them and "SquareL" and they seem more
successive after 100K steps ... 200K steps ... SquareL still keeps two arenas. The real competition .

Code: Select all

x = 925, y = 1510, rule = shapeloop-a
925N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.
N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$191N50.440N50.194N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$362N50.101N50.362N$
N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$49N50.727N50.
49N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.
N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$191N50.443N50.191N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N171.2DAC286.N461.N$N171.C2HD286.N461.N$N171.D2HA286.N461.
N$N171.D2HB286.N461.N$N171.AHI2DCD283.N461.N$N171.DHI3HA283.N461.N$N
171.EH3.HA283.N461.N$N171.A5HA283.N461.N$N171.7A283.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.
N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N218.2AED239.N461.N$N218.A2HA239.N461.N$N218.A2HD239.N461.
N$N218.A2HD239.N461.N$N218.AHI2DCD236.N461.N$N218.AHI3HD236.N461.N$N
218.AH3.HD236.N461.N$N218.AH3.HC236.N461.N$N218.A5HA236.N461.N$N218.A
DC2DBD236.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N376.DA2D81.N461.N$
N376.A2HC81.N461.N$N376.A2HB81.N461.N$N376.AHID81.N461.N$N376.CHIDCD
79.N461.N$N376.AHI2HA79.N461.N$N376.DH2.HA79.N461.N$N376.EH2.HA79.N
461.N$N376.A4HA79.N461.N$N376.6A79.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$925N!

PS. This time after ~300K wins the biggest loop. It is not very usual.

bprentice · Post by **bprentice** » September 26th, 2014, 2:16 pm

Here is one that does quite well:

Code: Select all

x = 925, y = 1510, rule = shapeloop-a
925N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.
N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$191N50.440N50.194N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$362N50.101N50.362N$
N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N222.EDADADAD231.N461.N$N222.D
6HA231.N461.N$N222.DH2.2IHD231.N461.N$N222.AH2.H3A231.N461.N$N222.DH
2.HD233.N461.N$N222.DH2.HD233.N461.N$N222.D4HC233.N461.N$N222.CDCB2D
233.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N224.
6A231.N$N461.N224.A4HA231.N$N461.N224.AH2.HE231.N$N461.N224.AH2.HD
231.N$N461.N224.A2HIHA231.N$N461.N224.DCDIHC231.N$N461.N226.DIHA231.N
$N461.N226.B2HA231.N$N461.N226.C2HA231.N$N461.N226.2DAD231.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$49N50.727N50.49N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$191N50.443N50.
191N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N227.B2DC2DC2D
225.N461.N$N227.D7HB225.N461.N$N227.DH5.HD225.N461.N$N227.CH5.HD225.N
461.N$N223.2DC2DH5.HA225.N461.N$N223.B4H6.HA225.N461.N$N223.DH9.HA
225.N461.N$N223.D4H3.4HA225.N461.N$N223.C2DADH.H5A225.N461.N$N227.AH.
HA229.N461.N$N227.DH.HA229.N461.N$N227.A3HA229.N461.N$N227.DE3A229.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N227.G2DC2DB2DCD223.N461.N$N69.H158.A8HA223.N461.N$N69.
KDFDAD153.DH2.2I3HA223.N461.N$N70.D3HA153.AH2.H5A223.N461.N$N70.CH.HD
153.AH2.HA227.N461.N$N70.DH.HA153.AH2.HA227.N461.N$N70.DH.HDADAD149.C
4HA227.N461.N$N70.BH2.4HA149.2DADFA227.N461.N$N70.DH5.HD844.N$N70.DH
5.HA844.N$N70.CH5.HD844.N$N70.DH5.HA844.N$N70.DH5.HD844.N$N70.AH5.HA
844.N$N70.DH5.HD844.N$N70.AH5.HD327.2DC2D512.N$N70.DH5.HC327.B3HC512.
N$N70.AH5.HD327.DH.HD512.N$N70.D7HD327.DH.HD512.N$N70.ADADADADA323.DC
2DCH.HB2D2A508.N$N402.D4H3.4HA508.N$N402.BH9.HA508.N$N402.D4H3.4HA
508.N$N402.DC2DCH.H5A508.N$N406.DH.HA512.N$N406.DH.HA512.N$N406.B3HA
512.N$N406.2DE2A512.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.
N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.
N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N226.ADADADAD227.N461.N$N226.D6HA
227.N461.N$N226.AH4.HD227.N461.N$N226.DH4.HD227.N461.N$N222.2AEDAH4.H
C227.N461.N$N222.A3H2I4.HD227.N461.N$N222.A10HD227.N461.N$N222.7ADC2D
B227.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$925N!

Brian Prentice

bprentice · Post by **bprentice** » September 26th, 2014, 2:44 pm

This one published by Scorbie here:

viewtopic.php?f=11&t=1440#p13399

also does well.

Code: Select all

x = 925, y = 1510, rule = shapeloop-a
925N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.
N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$191N50.440N50.194N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$362N50.101N50.362N$
N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N222.6A233.N$N461.N222.A4HA233.N$N461.N222.AH2.HE233.N$N461.N222.
AH2.HD233.N$N461.N222.A2HIHA233.N$N461.N222.DCDIHC233.N$N461.N224.DIH
A233.N$N461.N224.B2HA233.N$N216.6A239.N224.C2HA233.N$N216.E4HA239.N
224.2DAD233.N$N216.D4HA239.N461.N$N216.D2HD2A239.N461.N$N216.D2HC241.
N461.N$N216.CDCB241.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$49N50.727N50.49N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$191N50.443N50.191N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N227.B2DC2DC2D225.N461.N$N227.D7HB225.N461.N$N227.D
H5.HD225.N461.N$N227.CH5.HD225.N461.N$N223.2DC2DH5.HA225.N461.N$N223.
B4H6.HA225.N461.N$N223.DH9.HA225.N461.N$N223.D4H3.4HA225.N461.N$N223.
C2DADH.H5A225.N461.N$N227.AH.HA229.N461.N$N227.DH.HA229.N461.N$N227.A
3HA229.N461.N$N227.DE3A229.N461.N$N461.N461.N$N461.N461.N$N461.N461.N
$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N227.G2DC2DB2DCD223.N461.N$
N69.H158.A8HA223.N461.N$N69.KDFDAD153.DH2.2I3HA223.N461.N$N70.D3HA
153.AH2.H5A223.N461.N$N70.CH.HD153.AH2.HA227.N461.N$N70.DH.HA153.AH2.
HA227.N461.N$N70.DH.HDADAD149.C4HA227.N461.N$N70.BH2.4HA149.2DADFA
227.N461.N$N70.DH5.HD844.N$N70.DH5.HA844.N$N70.CH5.HD844.N$N70.DH5.HA
844.N$N70.DH5.HD844.N$N70.AH5.HA844.N$N70.DH5.HD844.N$N70.AH5.HD327.
2DC2D512.N$N70.DH5.HC327.B3HC512.N$N70.AH5.HD327.DH.HD512.N$N70.D7HD
327.DH.HD512.N$N70.ADADADADA323.DC2DCH.HB2D2A508.N$N402.D4H3.4HA508.N
$N402.BH9.HA508.N$N402.D4H3.4HA508.N$N402.DC2DCH.H5A508.N$N406.DH.HA
512.N$N406.DH.HA512.N$N406.B3HA512.N$N406.2DE2A512.N$N923.N$N923.N$N
923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$
N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N
$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N923.N$N461.N461.N$
N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
226.ADADADAD227.N461.N$N226.D6HA227.N461.N$N226.AH4.HD227.N461.N$N
226.DH4.HD227.N461.N$N222.2AEDAH4.HC227.N461.N$N222.A3H2I4.HD227.N
461.N$N222.A10HD227.N461.N$N222.7ADC2DB227.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.
N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N
461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N461.N461.N$N
461.N461.N$925N!

Brian Prentice

Tezcatlipoca · Post by **Tezcatlipoca** » September 26th, 2014, 7:10 pm

Code: Select all

x = 7, y = 7, rule = shapeloop

A2DCD$C3HA$AH.H3A$AH2.2HD$A4HJA$BAC2AFD$G!

Here is my contribution! I call it the "dismal tide" because it is decidedly boring behaviorally and it moves kind of a like a tide.

ConwayLife.com

Self-Replicator Competition?

Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?

Re: Self-Replicator Competition?
