Travelling Ts(b3s23-a5) and its variants

[LuveelVoom]

New smallest c/5d?

Code: Select all

x = 11, y = 11, rule = B3/S23-a5
4bo2b3o$3b3ob3o$10bo$bo2bob2o$2ob2obob3o$bo3bob3o$3b2o3b2o$2obobo$2o2b
3o$2o2b3o$2bobo!

[hotcrystal0]

Very low clearance D(F/Lx)13P found while experimenting with the recent catalyses:

Code: Select all

x = 17, y = 13, rule = B3/S23-a5History
2.2A$2.A.A2.2A$4.A3.A$4A.3A$A2.A.A3$11.2A$4.2D6.A$3.D.3C3.3A.2A$4.C2D
C4.3A.A$4.C.DC4.A$5.2C!

The reason it’s designated as F/Lx is because the teardrop is diagonally symmetric.

P8 sparker from D8_4 (and reduced by me):

Code: Select all

x = 16, y = 8, rule = B3/S23-a5
3bo8bo$2bob3o2b3obo$3obobo2bobob3o$obobo6bobobo$3b2ob4ob2o$5bo4bo$5bo
b2obo$6b2obo!

Also, the P10 bun hassler can reflect gliders 180°, allowing for loops of periods 30+40n to be constructed:

Code: Select all

x = 13, y = 17, rule = B3/S23-a5
6bo$6bobo$6b2o7$3b2o3b2o$3bobobobo$3bobobobo$4bo3bo$bo9bo$2o9b2o$2o9b
2o$o11bo!

New SKOP 70 using this:

Code: Select all

x = 16, y = 31, rule = B3/S23-a5
2b2o9b2o$bo13bo$4bo7bo$2b2o9b2o2$6b2ob2o$3bobobobobobo$3bobobobobobo$
5bo5bo$5bo5bo7$4bo$3bo$3b3o5$3b2o3b2o$3bobobobo$3bobobobo$4bo3bo$bo9b
o$2o9b2o$2o9b2o$o11bo!

Edit: corrected conduit nomenclature (it’s 13P not 14P)

[LuveelVoom]

This stupid common spark is the most useless thing imaginable. Here's the only catalyst with ANY output I could find:

Code: Select all

x = 7, y = 10, rule = B3/S23-a5
2o3b2o$obobobo$2bobo$b2ob2o3$2b3o$3bobo$5bo$3b2o!

A miserable attempt at a catalyst, perhaps salvagable:

Code: Select all

x = 5, y = 8, rule = B3/S23-a5
bo$obo$bo3$2bo$2bobo$2b3o!

Edit: Fleet eater:

Code: Select all

x = 10, y = 6, rule = B3/S23-a5
$2bo$b3ob2obo$3o2bob2o$bo!

Another interesting fleet reaction:

Code: Select all

x = 11, y = 4, rule = B3/S23-a5
2bo4b2obo$b3o3bob2o$3o$bo!

[hotcrystal0]

This stupid common spark is the most useless thing imaginable. Here's the only catalyst with ANY output I could find:

Code: Select all

x = 7, y = 10, rule = B3/S23-a5
2o3b2o$obobobo$2bobo$b2ob2o3$2b3o$3bobo$5bo$3b2o!

[…]

That “stupid common spark” is the R. It would have been on the list of common evolutionary sequences if it didn’t last that short.

[1and0nlycordershippr]

Are there Margolus p6 oscillators that are also strictly volatile?

Here is why not:

Code: Select all

x = 0, y = 0, rule = B3/S23-a5
8o$8o!
[[ AUTOIDENTIFY ]]

It flips diagonally every 3 generations.

This can be proven for all periods supporting Margolus oscillators.

[LuveelVoom]

That “stupid common spark” is the R. It would have been on the list of common evolutionary sequences if it didn’t last that short.

Yes, I am aware. I would have called it the R-spark but I thought given the tone of the rest of the message people would think the "R" was referring to a certain inappropriate word

[LuveelVoom]

Possible angles of attack on the yyh_baboon failed reflector (or for other purposes):

Code: Select all

x = 152, y = 72, rule = B3/S23-a5History
67.2C$66.C2.C$67.C.C12.E$68.C11.3E$79.E$79.2E$35.2C10.E$34.C2.C7.3E$35.
C.C6.E27.3A$36.C7.2E24.2A2.A$70.A.2A$62.2E5.2A$37.3A23.E$35.2A2.A23.E
.E$35.A.2A25.2E$27.2E5.2A$28.E$28.E.E$29.2E9$69.2C$68.C2.C12.E$69.C.C
10.3E23.2A25.2A$70.C10.E26.A.A2.2A20.A.A2.2A$34.2C45.2E27.A3.A22.A3.A
$33.C2.C69.4A.3A19.4A.3A$33.C.C13.E56.A2.A.A21.A2.A.A$34.C12.3E24.3A$
46.E25.2A2.A$46.2E24.A.2A31.D$64.2E5.2A33.2D$65.E41.D30.3C3.D$39.3A23.
E.E47.2D20.C2.C2.D.D4.2A$37.2A2.A24.2E46.D2.D19.C2.C2.2D5.A$37.A.2A73.
D.D21.2C9.3A$29.2E5.2A77.D31.A$30.E116.3A$30.E.E112.A.A.A$31.2E112.2A
$110.F$110.F$110.F$110.F$108.F.F.F$109.3F$110.F5$49.E$47.3E58.2A$46.E
61.A.A2.2A$46.2E62.A3.A$106.4A.3A$F105.A2.A.A$F38.3A$F3.F7.2A23.2A2.A
$F4.F5.A2.A22.A.2A$7F4.A.A15.2E5.2A$5.F5.2A17.E82.2C$4.F25.E.E78.C2.2C
$31.2E79.C2.C$112.4C$114.2C!

The leftmost pattern is a common evolutionary sequence created when a loaf is catalyzed by a spark; this might have uses beyond attacking the reflector.
The pile of central patterns are interactions with the p248 spark; as above, this may (and I suspect, in fact, that it almost certainly does) have uses beyond attacking the reflector.
The leftmost patterns is the reflector reaction itself (at the first point before it can start interacting with catalysts) and a combination of the boat catalysis and the teardrop catalysis.
It would be difficult, but it might be worth looking for periodic interactions with the base reflector active region. Perhaps someone could stick sparks around it at each generation of its evolution.

We do not have to find a stable solution. What would be nearly as valuable is a periodic solution, as it would knock out many missing periods (if the reaction is edgy enough, all periods above the periodic solution except for ones that interfere with the oscillator!); in fact, if it fits neatly in the range of missing periods, it could knock out all the remaining periods above a certain point.

[I6_I6]

Teardrop knockoff:

Code: Select all

x = 3, y = 5, rule = B3/S23-a5
3o$3o$obo$obo$bo!

[hotcrystal0]

New catalyst, found by hand:

Code: Select all

x = 13, y = 11, rule = B3/S23-a5
9b2o$9bo$8b3o$o6bo$7b2o$b3o4bo$3bo4bobobo$3bo3b2ob3o$b2o5bobo$7bo2bo$
8b2o!

This one can catalyze some but not all regions with that frontend.

[LuveelVoom]

Two catalysts for the p284 spark, both probably useless:

Code: Select all

x = 21, y = 14, rule = B3/S23-a5
12b2o$12bo7bo$13bo4b3o$12b2o3bo$17b2o3$10b3o$8b2o2bo$8bob2o$2o5b2o$bo
$bobo$2b2o!

Code: Select all

x = 21, y = 13, rule = B3/S23-a5
7b2o11bo$7bo4b2o4b3o$8b3o2bo3bo$10b2o5b2o3$10b3o$8b2o2bo$8bob2o$2o5b2o
$bo$bobo$2b2o!

[LuveelVoom]

New catalyst, found by hand:

Code: Select all

x = 13, y = 11, rule = B3/S23-a5
9b2o$9bo$8b3o$o6bo$7b2o$b3o4bo$3bo4bobobo$3bo3b2ob3o$b2o5bobo$7bo2bo$
8b2o!

This one can catalyze some but not all regions with that frontend.

I hate to disappoint you but this is two-prongs:

Code: Select all

x = 12, y = 6, rule = B3/S23-a5
3o$o2bo3bo$3bo3b3obo$b3o2b3ob2o$7bo$6b2o!

Edit: ahaha not quite. Hotcrystal0's recovers slightly faster.

[yyh_baboon]

Code: Select all

 x = 19, y = 17, rule = B3/S23-a5
2b2o$2bobo2b2o$4bo3bo$4ob3o$o2bobo3$bo$2o$bo$9b2o$8bo2bo$8bobo$9bo6b2o
$15bo2bo$15bobo$16bo!

Code: Select all

 x = 18, y = 15, rule = B3/S23-a5
2b2o$2bobo2b2o$4bo3bo$4ob3o$o2bobo3$bo$2o$bo$9b2o$8bo2bo$8bobo$9bo5b3o
$15b3o!

Some notes on moving loaves:

Code: Select all

 x = 35, y = 28, rule = B3/S23-a5
17bo$16bobo$16bobo$16b2o9$b2o14bo15bo$o2bobo10bobo13bobo$obo2bo10bobo
12b2obo$bo14b2o14b2o$30bo$15bo7$b2o14bo15bo$o2bo12bobo13bobo$obo2bo10b
obo10bob2obo$bo3bo10b2o2bo8bo2b2o!

[hotcrystal0]

????? (catalyst that makes an eater)

Code: Select all

x = 8, y = 12, rule = B3/S23-a5
4bo$3bobo$3bobo$2b2obobo$5b3o$5bo3$3o$o2bo$o2bo$b2o!

I found this completely by accident when in my private hand-searching for interesting reactions notes, a teardrop coming out of part of a region ended up crashing into the back of a catalyst and creating this reaction.

[WhiteHawk]

Is this the smallest SL in this rule which contains a full block?

Code: Select all

x = 5, y = 4, rule = B3/S23-a5
2obo$b2obo$b2obo$2obo!

EDIT: No, it's this one

Code: Select all

x = 4, y = 4, rule = B3/S23-a5
bo$b3o$3o$2bo!

[LuveelVoom]

Some near misses, an active region, and key catalysts:

Code: Select all

x = 116, y = 52, rule = B3/S23-a5History
51.2A$50.A.A5.A.2A$50.A7.2A.A$49.2A$5.A$5.A.A$C4.3A82.C$C49.A8.2A5.2A
20.2C.C$C48.A.A6.A2.A5.A21.C.2C$50.A6.A2.A5.3A.2A18.C$58.2A7.3A.A$67.
A3$112.4E3$109.2D$107.C2.D$107.C.CD$107.3C2$104.E$104.E$104.E$104.E6$
6.A$3C3.A.A$6.3A15$36.A$36.A.A$36.3A$29.4C!

I believe the 5 catalysts in the center are the only known ones that currently have at least 2 unique uses. Does anyone have more?

Oh, also:

smaller catalyst:

Code: Select all

 x = 14, y = 9, rule = B3/S23-a5
11bo$10bobo$9b2ob2o$5b2o4bo$4bobo$4bo$b2obo$obob2o$bo!

Same population, one cell smaller bounding box

Code: Select all

x = 14, y = 8, rule = B3/S23-a5
11bo$10bobo$9b2ob2o$5b2o4bo$4bobo$bo2bo$obobo$b2ob2o!

Vaguely useful?

Code: Select all

x = 8, y = 9, rule = B3/S23-a5
2b2o$2bobo$b3o$o$2o4b2o$bo4bo$o5bo$2o4b2o$6bo!

VLS is shockingly powerful...

Another multi-occurrence catalyst

Code: Select all

x = 9, y = 9, rule = B3/S23-a5
$4b2o$5bo$o2bo$bob2o$4bo$4bobo$5b2o!

Some more infuriating things:

Code: Select all

x = 16, y = 12, rule = B3/S23-a5
12b3o$5b2o5bobo$4bobo6b3o$bo2bo$obobo6bo$b2ob2o5bo$11bo2$10bo$8b3o$8b
obobo$11b2o!

Code: Select all

x = 12, y = 12, rule = B3/S23-a5
b2ob2o4b2o$ob2obo5bo$bob4ob3o$2bobobobo3$8bo$7b3o$8bobo$7b2obo$8b2o$8b
o!

Code: Select all

x = 8, y = 12, rule = B3/S23-a5
2o4b2o$o5bo$b3ob3o$3bobobo3$4bo$3b3o$4bobo$3b2obo$4b2o$4bo!

Code: Select all

x = 10, y = 10, rule = B3/S23-a5
7bo$2o4b3o$o6bobo$b3o2b2obo$4bo2b2o$3bo3bo$3b2o2$b4o$bo2bo!

Code: Select all

x = 10, y = 6, rule = B3/S23-a5
7bo$2o4b3o$o2bo3bobo$2b2o2b2obo$7b2o$7bo!

Help me...

Code: Select all

x = 16, y = 12, rule = B3/S23-a5
12b3o$5b2o5bobo$4bobo6b3o$bo2bo$obobo6bo$b2ob2o5bo$11bo2$10bo$8b3o$8b
obobo$11b2o!

[hotcrystal0]

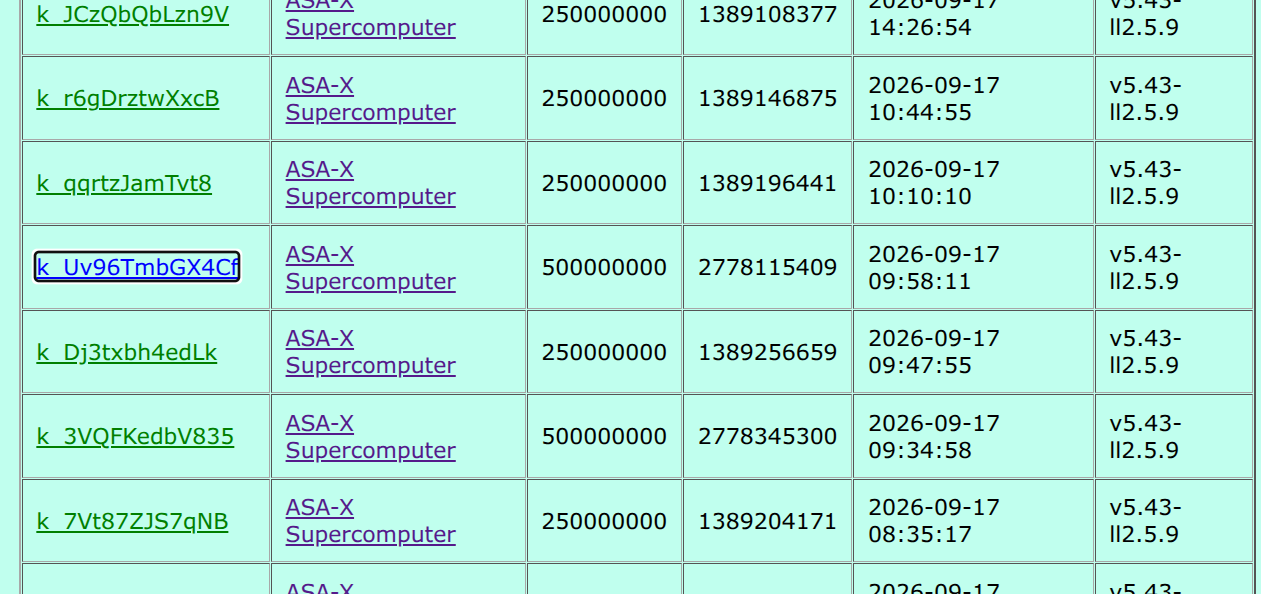

P132 from the D4_+2 census, presumably found by ASA-X Supercomputer:

Code: Select all

x = 33, y = 24, rule = B3/S23-a5
12b2o5b2o$11bo2bo3bo2bo$10bo2bo5bo2bo$10bob2o5b2obo$11bo9bo$2o29b2o$2o
29b2o$2o29b2o9$2o29b2o$2o29b2o$2o29b2o$11bo9bo$10bob2o5b2obo$10bo2bo5b
o2bo$11bo2bo3bo2bo$12b2o5b2o!

It’s also strictly volatile.

[LuveelVoom]

ThePlayzr provided an RLE of the most common active regions on the discord; here, I proposed names for them

Code: Select all

x = 105, y = 127, rule = B3/S23-a5
23bo18bo18bo20b3o17bo$bo18b2obo37bobo20bo15bobo$bobo18bobo15b2o21bo$b
3o37b2o18b3o16b2o19b2o$42bo38bobo17bo$100bo14$2bo$2ob2o15b3o17bob3o16b
o20bo17b3o$bobo16bo19b2o19bo18bobo19bo$2bo19bo37bobo20bobo16bo$22b2o37b
3o19bo17b2o17$22bo18bo19bo18b2o18b2obo$2bo18bo3bo14bo2bo16b2o20b2o17b
o2bo$bo18bo2b3o15bo18bobo20bo19bo$b3o37bo40b3o17bo$42bo19b2o$43bo15$21b
o20bo18bo19bo18bo$2bo17b2o18b2o18bobo19bo18bo$b3o17b2o37bo2bo17bo19bo
$24bo15bo3bo15b3o18bo18bo$22bo21bo35bo19b3o$44bo35b3o14$2bo$2ob2o16bo
b2o17bo18bo19b2o17b3o$bobo16bo2bo17b2o19b2o16b2o18bo2bo$20b3o20bo17bo
20b2o17bo$40b2obo16bo2bo20bo15b2o$40bo20bo16$21bo20bo18b2o17b2o19bo$b
3o17b2o18b3o17bo38b2obo$bobo17bo18b2o18bo21bo20bo$bobo17b2o39bo18b3o18b
2o$42bo18b3o18bo$20bo$20bo14$3bo18bo18bobo17bo21b2o$2bobo35bo3bo15bob
o$2o2bo15b2o20bo18bo18b2obo$2b2o17bo19bo2bo37b3o$20bobo20b2o16b2o$21b
o38bo$20bo!
[[ LABEL 2 7 10 "R-spark [sR]" ]]
[[ LABEL 22 7 10 "Two-loaf [2]" ]]
[[ LABEL 42 7 10 "Nose [sN]" ]]
[[ LABEL 62 7 10 "Bhep [B]" ]]
[[ LABEL 82 7 10 "Pre-twoloaf [P]" ]]
[[ LABEL 102 7 10 "Rotator [R]" ]]
[[ LABEL 2 27 10 "Three-blinker [3]" ]]
[[ LABEL 22 27 10 "False Rotator [F]" ]]
[[ LABEL 42 27 10 "Iwonian Spark [sI]" ]]
[[ LABEL 62 27 10 "Pseudo-muck [sM]" ]]
[[ LABEL 82 27 10 "Bomb [sB]" ]]
[[ LABEL 102 27 10 "Useless Thing [sUT]" ]]
[[ LABEL 22 47 10 "Pre-3B [P3]" ]]
[[ LABEL 42 47 10 "Blinker Thrower [BT]" ]]
[[ LABEL 62 47 10 "Captured Glider [CG]" ]]
[[ LABEL 82 47 10 "Infuriated T [IT]" ]]
[[ LABEL 102 47 10 "Gobbling Spark [sGO]" ]]
[[ LABEL 22 67 10 "Spinny Two-loafer [S2]" ]]
[[ LABEL 42 67 10 "Boring Spark [sBK]" ]]
[[ LABEL 62 67 10 "Two-loaf Declined [sD2]" ]]
[[ LABEL 82 67 10 "Two-blinker Mess [2M]" ]]
[[ LABEL 102 67 10 "Nest [N3]" ]]
[[ LABEL 22 87 10 "Failure [sFS]" ]]
[[ LABEL 42 87 10 "Loaf-holding Spark [sLH]" ]]
[[ LABEL 62 87 10 "Jumping T [JT]" ]]
[[ LABEL 82 87 10 "Duopleted Glider [sDG]" ]]
[[ LABEL 102 87 10 "Duopleted Snake [sDS]" ]]
[[ LABEL 22 107 10 "Big Blinker Spark [sBB]" ]]
[[ LABEL 42 107 10 "Falling T [FT]" ]]
[[ LABEL 62 107 10 "Pond Methusela [PM]" ]]
[[ LABEL 82 107 10 "Glider-producing Plus [GP]" ]]
[[ LABEL 102 107 10 "Dashing Spark [sDH]" ]]
[[ LABEL 2 47 10 "Glider [G]" ]]
[[ LABEL 2 67 10 "Travelling T [T]" ]]
[[ LABEL 2 87 10 "Climbing C [C]" ]]
[[ LABEL 2 107 10 "Pi-blinker [Q]" ]]
[[ LABEL 22 127 10 "Flop [sFP]" ]]
[[ LABEL 42 127 10 "Bee [sBE]" ]]
[[ LABEL 62 127 10 "Tub Overflowing [sTO]" ]]
[[ LABEL 82 127 10 "Doubly-sparked T [DT]" ]]
[[ LABEL 2 127 10 "Loaf-flip [L]" ]]

Edit: A collection of rotator catalysts. The last one looks promising, I may do more searches on it:

Code: Select all

x = 70, y = 38, rule = B3/S23-a5
13bo$11b3o9b2ob2o15bob2o15bobobo$10b3o11b2obo2bo12b3o16b4obo$2bobobo2b
2o4bo8b2o2b3o13bobo16bob3o$3ob2obo2bobo10b2ob2o15bob2o15bob2o$obobobo
4b3o9bobo2bo12b3o16b3o$12b2o12b2o13bobo16bobo$42bo18bo$29b2o17b2o17b2o
$28bo2bo15bo2bo15bo2bo$28b2obo15b2obo15b2obo$29b3o16b3o16b3o12$24b2ob
2o$25b2o2bo18bobob2o$25b2ob2o16b3ob2obo$b2o21b2ob5o14bobobobo$o2bo25b
obo16bobo$obo26b2o16b2ob2o$bo$7b2o$6bo2bo18b2o$6b2obo16b2o22b2o$7b3o15b
obo20b2o$25bo3bo17bobo$25b2o2b2o16bo3bo$27b3o17b2o2b2o$49b3o!

[yyh_baboon]

small stator reductions:(seems like stator improvement is wanting in VLS)

Code: Select all

 x = 70, y = 38, rule = B3/S23-a5
13bo$11b3o9b2ob2o15bob2o15bobobo$2b2o6b3o11b2obo2bo12b3o16b4obo$2bobo
bo2b2o4bo8b2o2b3o13bobo16bob3o$4b2obo2bobo10b2ob2o15bob2o15bob2o$4bob
o4b3o9bobo2bo12b3o16b3o$12b2o12b2o13bobo16bobo$42bo18bo$29b2o17b2o17b
2o$28bo2bo15bo2bo15bo2bo$28b2obo15b2obo15b2obo$29b3o16b3o16b3o12$26b2o
$26bo2bo$28b2o16b2o3b2o$b2o24b5o14bobobobo$o2bo25bobo16bobo$obo26b2o16b
2ob2o$bo$7b2o$6bo2bo18b2o$6b2obo16b2o22b2o$7b3o15bobo20b2o$25bo3bo17b
obo$25b2o2b2o16bo3bo$27b3o17b2o2b2o$49b3o!

Now the double bookend has two catalysts
Edit: accidental oscillator:

Code: Select all

 x = 7, y = 9, rule = B3/S23-a5
2o3b2o$obobobo$2bobo$b2ob2o2$3bo$2b3o$bobobo$3bo!

2-cell off almost P3:

Code: Select all

 x = 7, y = 9, rule = B3/S23-a5
2o3b2o$obobobo$2bobo$b2ob2o2$3bo$2b3o$2b2obo$2bob2o!
[[ STOP 3 ]]

[ThePlayzr]

2-cell off almost P3:

Code: Select all

 x = 7, y = 9, rule = B3/S23-a5
2o3b2o$obobobo$2bobo$b2ob2o2$3bo$2b3o$2b2obo$2bob2o!
[[ STOP 3 ]]

Completion:

Code: Select all

x = 7, y = 15, rule = B3/S23-a5
2o3b2o$obobobo$2bobo$b2ob2o2$3bo$2b3o$2b2obo$2bob2o2$3b3o$2b2o2bo$bob
obo$ob3o$b2ob2o!

[hotcrystal0]

For some gun mechanisms that rely on sparks to release spaceships, a sparker that doesn’t match the exact period can be used for an LCM, but this usually only works if common factors are shared between the periods of the mechanism and releasing sparker. For example, here is a P1056 T gun combining a P96 Margolus as the base and a P132 releasing sparker:

Code: Select all

x = 137, y = 132, rule = B3/S23-a5
4$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o
$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o
$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o$5b128o
$5b128o$5b128o67$60b2o7b2o$60b2o7b2o$61bo7bo$56b5obo5bob5o$55bobo2bob
o5bobo2bobo$62bo5bo$63bo3bo$48b4o7bo2bobobobo2bo7b4o$62b2o3b2o9$62b2o
3b2o$48b4o7bo2bobobobo2bo7b4o$63bo3bo$62bo5bo$55bobo2bobo5bobo2bobo$56b
5obo5bob5o$61bo7bo$60b2o7b2o$60b2o7b2o!

[TheWayOfTheCon]

P132 from the D4_+2 census, presumably found by ASA-X Supercomputer:

Code: Select all

x = 33, y = 24, rule = B3/S23-a5
12b2o5b2o$11bo2bo3bo2bo$10bo2bo5bo2bo$10bob2o5b2obo$11bo9bo$2o29b2o$2o
29b2o$2o29b2o9$2o29b2o$2o29b2o$2o29b2o$11bo9bo$10bob2o5b2obo$10bo2bo5b
o2bo$11bo2bo3bo2bo$12b2o5b2o!

That oscillator's first and only appearance so far was in the haul k_Uv96TmbGX4Cf, and indeed that haul was submitted by ASA-X.

[PK22]

Hybrid synthesis for the new p132 in 15G + 4T (probably convertible into a pure 23G synth):

Code: Select all

x = 79, y = 62, rule = B3/S23-a5
76bobo$76b2o$77bo3$5bobo$6b2o$6bo28b3o3b3o$35b3o3b3o$36bo5bo2$2bo$obo$
b2o3$71bo$71bobo$71b2o4$47bo$46bo$36bo9b3o$35bo$35b3o5$43bo$43b2o$20b
3o19bobo11b3o$22bo33bo$21bo35bo8$6b2o14bo33bo$5bobo14b2o31b2o$7bo13bob
o31bobo3$76b2o$76bobo$76bo2$36bo5bo$35b3o3b3o$35b3o3b3o28bo$71b2o$71bo
bo3$bo$b2o$obo!

[hotcrystal0]

ThePlayzr provided an RLE of the most common active regions on the discord; here, I proposed names for them

Code: Select all

x = 105, y = 127, rule = B3/S23-a5
23bo18bo18bo20b3o17bo$bo18b2obo37bobo20bo15bobo$bobo18bobo15b2o21bo$b
3o37b2o18b3o16b2o19b2o$42bo38bobo17bo$100bo14$2bo$2ob2o15b3o17bob3o16b
o20bo17b3o$bobo16bo19b2o19bo18bobo19bo$2bo19bo37bobo20bobo16bo$22b2o37b
3o19bo17b2o17$22bo18bo19bo18b2o18b2obo$2bo18bo3bo14bo2bo16b2o20b2o17b
o2bo$bo18bo2b3o15bo18bobo20bo19bo$b3o37bo40b3o17bo$42bo19b2o$43bo15$21b
o20bo18bo19bo18bo$2bo17b2o18b2o18bobo19bo18bo$b3o17b2o37bo2bo17bo19bo
$24bo15bo3bo15b3o18bo18bo$22bo21bo35bo19b3o$44bo35b3o14$2bo$2ob2o16bo
b2o17bo18bo19b2o17b3o$bobo16bo2bo17b2o19b2o16b2o18bo2bo$20b3o20bo17bo
20b2o17bo$40b2obo16bo2bo20bo15b2o$40bo20bo16$21bo20bo18b2o17b2o19bo$b
3o17b2o18b3o17bo38b2obo$bobo17bo18b2o18bo21bo20bo$bobo17b2o39bo18b3o18b
2o$42bo18b3o18bo$20bo$20bo14$3bo18bo18bobo17bo21b2o$2bobo35bo3bo15bob
o$2o2bo15b2o20bo18bo18b2obo$2b2o17bo19bo2bo37b3o$20bobo20b2o16b2o$21b
o38bo$20bo!
[[ LABEL 2 7 10 "R-spark [sR]" ]]
[[ LABEL 22 7 10 "Two-loaf [2]" ]]
[[ LABEL 42 7 10 "Nose [sN]" ]]
[[ LABEL 62 7 10 "Bhep [B]" ]]
[[ LABEL 82 7 10 "Pre-twoloaf [P]" ]]
[[ LABEL 102 7 10 "Rotator [R]" ]]
[[ LABEL 2 27 10 "Three-blinker [3]" ]]
[[ LABEL 22 27 10 "False Rotator [F]" ]]
[[ LABEL 42 27 10 "Iwonian Spark [sI]" ]]
[[ LABEL 62 27 10 "Pseudo-muck [sM]" ]]
[[ LABEL 82 27 10 "Bomb [sB]" ]]
[[ LABEL 102 27 10 "Useless Thing [sUT]" ]]
[[ LABEL 22 47 10 "Pre-3B [P3]" ]]
[[ LABEL 42 47 10 "Blinker Thrower [BT]" ]]
[[ LABEL 62 47 10 "Captured Glider [CG]" ]]
[[ LABEL 82 47 10 "Infuriated T [IT]" ]]
[[ LABEL 102 47 10 "Gobbling Spark [sGO]" ]]
[[ LABEL 22 67 10 "Spinny Two-loafer [S2]" ]]
[[ LABEL 42 67 10 "Boring Spark [sBK]" ]]
[[ LABEL 62 67 10 "Two-loaf Declined [sD2]" ]]
[[ LABEL 82 67 10 "Two-blinker Mess [2M]" ]]
[[ LABEL 102 67 10 "Nest [N3]" ]]
[[ LABEL 22 87 10 "Failure [sFS]" ]]
[[ LABEL 42 87 10 "Loaf-holding Spark [sLH]" ]]
[[ LABEL 62 87 10 "Jumping T [JT]" ]]
[[ LABEL 82 87 10 "Duopleted Glider [sDG]" ]]
[[ LABEL 102 87 10 "Duopleted Snake [sDS]" ]]
[[ LABEL 22 107 10 "Big Blinker Spark [sBB]" ]]
[[ LABEL 42 107 10 "Falling T [FT]" ]]
[[ LABEL 62 107 10 "Pond Methusela [PM]" ]]
[[ LABEL 82 107 10 "Glider-producing Plus [GP]" ]]
[[ LABEL 102 107 10 "Dashing Spark [sDH]" ]]
[[ LABEL 2 47 10 "Glider [G]" ]]
[[ LABEL 2 67 10 "Travelling T [T]" ]]
[[ LABEL 2 87 10 "Climbing C [C]" ]]
[[ LABEL 2 107 10 "Pi-blinker [Q]" ]]
[[ LABEL 22 127 10 "Flop [sFP]" ]]
[[ LABEL 42 127 10 "Bee [sBE]" ]]
[[ LABEL 62 127 10 "Tub Overflowing [sTO]" ]]
[[ LABEL 82 127 10 "Doubly-sparked T [DT]" ]]
[[ LABEL 2 127 10 "Loaf-flip [L]" ]]

Here are my names for them. Some less common regions are not given a conduit label and others are left entirely unnamed.

Code: Select all

x = 105, y = 127, rule = B3/S23-a5
23bo18bo18bo20b3o17bo$bo18b2obo37bobo20bo15bobo$bobo18bobo15b2o21bo$b
3o37b2o18b3o16b2o19b2o$42bo38bobo17bo$100bo14$2bo$2ob2o15b3o17bob3o16b
o20bo17b3o$bobo16bo19b2o19bo18bobo19bo$2bo19bo37bobo20bobo16bo$22b2o37b
3o19bo17b2o17$22bo18bo19bo18b2o18b2obo$2bo18bo3bo14bo2bo16b2o20b2o17b
o2bo$bo18bo2b3o15bo18bobo20bo19bo$b3o37bo40b3o17bo$42bo19b2o$43bo15$21b
o20bo18bo19bo18bo$2bo17b2o18b2o18bobo19bo18bo$b3o17b2o37bo2bo17bo19bo
$24bo15bo3bo15b3o18bo18bo$22bo21bo35bo19b3o$44bo35b3o14$2bo$2ob2o16bo
b2o17bo18bo19b2o17b3o$bobo16bo2bo17b2o19b2o16b2o18bo2bo$20b3o20bo17bo
20b2o17bo$40b2obo16bo2bo20bo15b2o$40bo20bo16$21bo20bo18b2o17b2o19bo$b
3o17b2o18b3o17bo38b2obo$bobo17bo18b2o18bo21bo20bo$bobo17b2o39bo18b3o18b
2o$42bo18b3o18bo$20bo$20bo14$3bo18bo18bobo17bo21b2o$2bobo35bo3bo15bob
o$2o2bo15b2o20bo18bo18b2obo$2b2o17bo19bo2bo37b3o$20bobo20b2o16b2o$21b
o38bo$20bo!
[[ LABEL 2 7 10 "R-spark [sR]" ]]
[[ LABEL 22 7 10 "Teardrop [D]" ]]
[[ LABEL 42 7 10 "S-spark [sS]" ]]
[[ LABEL 62 7 10 "B-heptomino [B]" ]]
[[ LABEL 82 7 10 "Pre-teardrop [*D]" ]]
[[ LABEL 102 7 10 "Rotator [P]" ]]
[[ LABEL 2 27 10 "Angel [A]" ]]
[[ LABEL 22 27 10 "False Rotator [F]" ]]
[[ LABEL 42 27 10 "Iwonian Spark [sI]" ]]
[[ LABEL 62 27 10 "Pseudo-muck [sM]" ]]
[[ LABEL 82 27 10 "Bomb [sB]" ]]
[[ LABEL 102 27 10 "Wannabe R [sW]" ]]
[[ LABEL 22 47 10 "Pre-angel [*A]" ]]
[[ LABEL 42 47 10 "Blinker Thrower" ]]
[[ LABEL 62 47 10 "Captured Glider" ]]
[[ LABEL 82 47 10 "Infuriated T" ]]
[[ LABEL 102 47 10 "Gobbling Spark" ]]
[[ LABEL 22 67 10 "Spinny pre-teardrop" ]]
[[ LABEL 42 67 10 "N/A" ]]
[[ LABEL 62 67 10 "N/A" ]]
[[ LABEL 82 67 10 "Two-blinker Mess" ]]
[[ LABEL 102 67 10 "Nest" ]]
[[ LABEL 22 87 10 "N/A" ]]
[[ LABEL 42 87 10 "N/A" ]]
[[ LABEL 62 87 10 "N/A" ]]
[[ LABEL 82 87 10 "N/A" ]]
[[ LABEL 102 87 10 "N/A" ]]
[[ LABEL 22 107 10 "N/A" ]]
[[ LABEL 42 107 10 "N/A" ]]
[[ LABEL 62 107 10 "N/A" ]]
[[ LABEL 82 107 10 "N/A" ]]
[[ LABEL 102 107 10 "N/A" ]]
[[ LABEL 2 47 10 "Glider [G]" ]]
[[ LABEL 2 67 10 "Travelling T [T]" ]]
[[ LABEL 2 87 10 "Climbing C [C]" ]]
[[ LABEL 2 107 10 "Pi-blinker" ]]
[[ LABEL 22 127 10 "N/A" ]]
[[ LABEL 42 127 10 "N/A" ]]
[[ LABEL 62 127 10 "N/A" ]]
[[ LABEL 82 127 10 "N/A" ]]
[[ LABEL 2 127 10 "Loaf-flip" ]]

Like with the situation with the HWSS in Life, I don’t think there’s a need to make F for the Flying F official right now because it’s very rare compared to the other 3 main spaceships.

[hotcrystal0]

Somehow I never posted this reduction to the P60 R hassler onto the forums even though I had it in the stamp collection:

Code: Select all

x = 124, y = 59, rule = B3/S23-a5
26b6o$26b6o64b2o$24b2o6b2o62b2o$24b2o6b2o60b2o2b2o$22b2o2b6o2b2o58b2o
2b2o$22b2o2b6o2b2o56b2o2b2o2b2o$20b2o2b2o6b2o2b2o54b2o2b2o2b2o$20b2o2b
2o6b2o2b2o52b2o2b2o2b2o2b2o$18b2o2b2o2b6o2b2o2b2o50b2o2b2o2b2o2b2o$18b
2o2b2o2b6o2b2o2b2o48b2o2b2o2b2o2b2o2b2o$16b2o2b2o2b2o6b2o2b2o2b2o46b2o
2b2o2b2o2b2o2b2o$16b2o2b2o2b2o6b2o2b2o2b2o44b2o2b2o2b2o2b2o2b2o2b2o$14b
2o2b2o2b2o2b6o2b2o2b2o2b2o42b2o2b2o2b2o2b2o2b2o2b2o$14b2o2b2o2b2o2b6o
2b2o2b2o2b2o40b2o2b2o2b2o2b2o2b2o2b2o2b2o$12b2o2b2o2b2o2b2o6b2o2b2o2b
2o2b2o38b2o2b2o2b2o2b2o2b2o2b2o2b2o$12b2o2b2o2b2o2b2o6b2o2b2o2b2o2b2o
18b2o2b2o12b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$10b2o2b2o2b2o2b2o2b6o2b2o2b
2o2b2o2b2o17bo2bo13b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$10b2o2b2o2b2o2b2o2b
6o2b2o2b2o2b2o2b2o17bo2bo11b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$8b2o2b
2o2b2o2b2o2b2o6b2o2b2o2b2o2b2o2b2o11bo2b2o2b2o2bo7b2o2b2o2b2o2b2o2b2o
2b2o2b2o2b2o2b2o$8b2o2b2o2b2o2b2o2b2o6b2o2b2o2b2o2b2o2b2o10bobo8bobo4b
2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$6b2o2b2o2b2o2b2o2b2o2b6o2b2o2b
2o2b2o2b2o2b2o9bo10bo5b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$6b2o2b2o
2b2o2b2o2b2o2b6o2b2o2b2o2b2o2b2o2b2o12b6o6b2o2b2o2b2o2b2o2b2o2b2o2b2o
2b2o2b2o2b2o2b2o$4b2o2b2o2b2o2b2o2b2o2b2o6b2o2b2o2b2o2b2o2b2o2b2o22b2o
2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$4b2o2b2o2b2o2b2o2b2o2b2o6b2o
2b2o2b2o2b2o2b2o2b2o20b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o
$2b2o2b2o2b2o2b2o2b2o2b2o2b6o2b2o2b2o2b2o2b2o2b2o2b2o18b2o2b2o2b2o2b2o
2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$2b2o2b2o2b2o2b2o2b2o2b2o2b6o2b2o2b2o
2b2o2b2o2b2o2b2o16b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o
$2o2b2o2b2o2b2o2b2o2b2o2b2o6b2o2b2o2b2o2b2o2b2o2b2o2b2o14b2o2b2o2b2o2b
2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$2o2b2o2b2o2b2o2b2o2b2o2b2o6b2o
2b2o2b2o2b2o2b2o2b2o2b2ob4obo5b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o
2b2o2b2o2b2o2b2o$2b2o2b2o2b2o2b2o2b2o2b2o2b6o2b2o2b2o2b2o2b2o2b2o2b2o
3b2obobo5b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$2b2o
2b2o2b2o2b2o2b2o2b2o2b6o2b2o2b2o2b2o2b2o2b2o2b2o3b6o5b2o2b2o2b2o2b2o2b
2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$4b2o2b2o2b2o2b2o2b2o2b2o6b2o2b
2o2b2o2b2o2b2o2b2o16b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b
2o2b2o$4b2o2b2o2b2o2b2o2b2o2b2o6b2o2b2o2b2o2b2o2b2o2b2o16b2o2b2o2b2o2b
2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$6b2o2b2o2b2o2b2o2b2o2b6o2b
2o2b2o2b2o2b2o2b2o18b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b
2o2b2o$6b2o2b2o2b2o2b2o2b2o2b6o2b2o2b2o2b2o2b2o2b2o6b2o12b2o2b2o2b2o2b
2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$8b2o2b2o2b2o2b2o2b2o6b2o2b2o2b
2o2b2o2b2o8b2o12b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$8b
2o2b2o2b2o2b2o2b2o6b2o2b2o2b2o2b2o2b2o6b2o2b2o12b2o2b2o2b2o2b2o2b2o2b
2o2b2o2b2o2b2o2b2o2b2o2b2o$10b2o2b2o2b2o2b2o2b6o2b2o2b2o2b2o2b2o5bo4b
2o4bo9b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$10b2o2b2o2b2o2b
2o2b6o2b2o2b2o2b2o2b2o4bobobo4bobobo10b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o
2b2o2b2o2b2o$12b2o2b2o2b2o2b2o6b2o2b2o2b2o2b2o7bo2b2o2b2o2bo11b2o2b2o
2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$12b2o2b2o2b2o2b2o6b2o2b2o2b2o2b2o
11bo2bo17b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$14b2o2b2o2b2o2b6o2b2o
2b2o2b2o13bo2bo17b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$14b2o2b2o2b2o
2b6o2b2o2b2o2b2o12b2o2b2o18b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$16b2o2b
2o2b2o6b2o2b2o2b2o38b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$16b2o2b2o2b2o
6b2o2b2o2b2o40b2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$18b2o2b2o2b6o2b2o2b2o42b
2o2b2o2b2o2b2o2b2o2b2o2b2o2b2o$18b2o2b2o2b6o2b2o2b2o44b2o2b2o2b2o2b2o
2b2o2b2o2b2o$20b2o2b2o6b2o2b2o46b2o2b2o2b2o2b2o2b2o2b2o2b2o$20b2o2b2o
6b2o2b2o48b2o2b2o2b2o2b2o2b2o2b2o$22b2o2b6o2b2o50b2o2b2o2b2o2b2o2b2o2b
2o$22b2o2b6o2b2o52b2o2b2o2b2o2b2o2b2o$24b2o6b2o54b2o2b2o2b2o2b2o2b2o$
24b2o6b2o56b2o2b2o2b2o2b2o$26b6o58b2o2b2o2b2o2b2o$26b6o60b2o2b2o2b2o$
92b2o2b2o2b2o$94b2o2b2o$94b2o2b2o$96b2o$96b2o!

Edit:

P48+; 48 and 49 only work with the dot but 50+ works with the domino

Code: Select all

x = 24, y = 15, rule = B3/S23-a5
7bo$6bobo$6bobo$4b2o3b2o$3bo7bo$4b2o3b2o$2o4bobo8bo$3o3bobo7bobo$b2o4b
o8bobo4bo$14b2o3b2o2bo$13bo7bo$14b2o3b2o$16bobo$16bobo$17bo!

The semi-natural P132 can support it:

Code: Select all

x = 43, y = 73, rule = B3/S23-a5
12b2o5b2o$11bo2bo3bo2bo$10bo2bo5bo2bo$10bob2o5b2obo$11bo9bo$2o29b2o$2o
29b2o$2o29b2o9$2o29b2o$2o29b2o$2o29b2o$11bo9bo$10bob2o5b2obo$10bo2bo5b
o2bo$11bo2bo3bo2bo$12b2o5b2o4$24bo$23bobo$23bobo$21b2o3b2o$20bo7bo$21b
2o3b2o$23bobo$23bobo$24bo2$18bo$17bobo$17bobo$15b2o3b2o$14bo7bo$15b2o
3b2o$17bobo$17bobo$18bo4$22b2o5b2o$21bo2bo3bo2bo$20bo2bo5bo2bo$20bob2o
5b2obo$21bo9bo$10b2o29b2o$10b2o29b2o$10b2o29b2o9$10b2o29b2o$10b2o29b2o
$10b2o29b2o$21bo9bo$20bob2o5b2obo$20bo2bo5bo2bo$21bo2bo3bo2bo$22b2o5b
2o!

[ThePlayzr]

New p28 SKOP using the p4 26-cell block sparker:

Code: Select all

x = 0, y = 0, rule = B3/S23-a5
2b2o6b2o$3bo6bo$2b3o4b3o$bo3bo2bo3bo$obo2bo2bo2bobo$bo3bo2bo3bo$2bo8b
o4$9b6o$6bo10bo$5bobo8bobo$6bo2b2o2b2o2bo$10bo2bo$10bo2bo$9b2o2b2o!
