pifricted’s rules and patterns bin

[pifricted]

I just want a place for discussing the rules (and some objects) I get after golfing. This is an informal thread, so feel free to post anything here.

To start with, a rule golfed from B2e3i4a/S23:

Code: Select all

 x = 39, y = 39, rule = B2en3i4a/S2-n3
28bo$28b2o$18bo$17b2o9b2o$14bo13b2o$13b2o7b2o$23bo$22b2o2$bob2o$2ob2o
15b2o$20bo2$33bo$33b2o$5b3o$5bobo$10bo24bo$10b2o23b2o2$2b2o23b2o$3bo24b
o$31bobo$31b3o$4b2o$5bo2$18bo$17b2o15b2ob2o$34b2obo2$15b2o$15bo$15b2o
7b2o$9b2o13bo$9b2o9b2o$20bo$9b2o$10bo!

40c/96 dirty puffers:

Code: Select all

 x = 23, y = 26, rule = B2en3i4a/S2-n3
8b2o3b2o$8bobobobo$9b2ob2o6$b2o5bobobobo5b2o$obo5b3ob3o5bobo3$bo19bo3$
10bobo$9b2ob2o$4b2o11b2o$b2ob2o3b2ob2o3b2ob2o$bo7b2ob2o7bo5$4bo13bo$3b
o15bo!

Code: Select all

 x = 57, y = 53, rule = B2en3i4a/S2-n3
20b2o3b2o$20bobobobo$21b2ob2o5$24bo5bo$13b2o9bo4b2o$12bobo9b2o$18b3o$
12b2o4bo$18b2o8$9b2o16b2o$9bo17bo$9b2o2$47b2o$24b2o23bo$26bo20b2o6b2o
$24b2o30bo$b2o52b2o$o23b2o$b2o15bo6bob2o$18b2o8bo$49bo$48bobo$48bo$22b
o$22b2o7$28bo$26b5o$28bobo$29b3o$29b2o4$30b2o$30bo!

[OCAfan55]

P20

Code: Select all

x = 15, y = 15, rule = B2en3i4a/S2-n3
6bobo$5b2ob2o3$bo11bo$2o11b2o3$7bo$2o4b3o4b2o$bo5bo5bo3$5b2ob2o$6bobo
!

EDIT: P6

Code: Select all

x = 9, y = 9, rule = B2en3i4a/S2-n3
bo$2o2$4bo$3b3o$4bo2$7b2o$7bo!

[pifricted]

A p140 tl hassler?:

Code: Select all

x = 35, y = 15, rule = B2en3i4a/S2-n3
6b2o2b2o2b2o2b2o2b2o2b2o$7bo3bo3bo3bo3bo3bo5$10b3o$2o8bobo20b2o$o9b3o
21bo5$7bo3bo3bo3bo3bo3bo$6b2o2b2o2b2o2b2o2b2o2b2o!

Edit: what

Code: Select all

x = 32, y = 15, rule = B2en3i4a/S2-n3
6b2o2b2o2b2o2b2o2b2o2b2o$7bo3bo3bo3bo3bo3bo$30bo$30b2o3$10b3o$2o8bobo
$o9b3o3$30b2o$30bo$7bo3bo3bo3bo3bo3bo$6b2o2b2o2b2o2b2o2b2o2b2o!

Failed c/2o to c/6d:

Code: Select all

x = 16, y = 9, rule = B2en3i4a/S2-n3
bob2o$2ob2o5$11b2o$5b3o3b2ob2o$5bobo7bo!

Could anybody apgsearch this rule?

[yyh_baboon]

Failed c/2o to c/6d:

Code: Select all

x = 16, y = 9, rule = B2en3i4a/S2-n3
bob2o$2ob2o5$11b2o$5b3o3b2ob2o$5bobo7bo!

The rightmost catalyst is unnecessary:

Code: Select all

 x = 8, y = 9, rule = B2en3i4a/S2-n3
bob2o$2ob2o6$5b3o$5bobo!

180 degree reflector:

Code: Select all

 x = 5, y = 9, rule = B2en3i4a/S2-n3
o$3o5$2o$bob2o$3b2o!

Spaceships-to-big-chaos:

Code: Select all

 x = 11, y = 12, rule = B2en3i4a/S2-n3
o6bo$3o4b2o6$6b2ob2o$6b2obo2$6b2o$6bo!

[pifricted]

Quite simple L reflector:

Code: Select all

x = 13, y = 12, rule = B2en3i4a/S2-n3
o$3o5$11b2o$11bo2$3b2o$4bo4b2o$9bo!

Claen L to tl:

Code: Select all

x = 17, y = 12, rule = B2en3i4a/S2-n3
8bo$4bo3b2o$3b2o10bo$15b2o7$3o$o!

Huge spliter:

Code: Select all

x = 21, y = 17, rule = B2en3i4a/S2-n3
10bo$6bo3b2o$5b2o11bo$18b2o5$19b2o$19bo3$3o$o2$5b2obobo$5bobob2o!

I have a bunch of catalysts but they're on my iPad.

[pifricted]

Code: Select all

x = 302, y = 111, rule = B2en3i4a/S2-n3
125bo12bo14bo$111bo13b2o11b2o8bo4b2o35bo$51bo31bo21bo5b2o7bo26b2o17bo
18bo4b2o$3o4b3o6bob2o27bo3b2o26bo3b2o19b2o13b2o12bo31b2o17b2o$obo6bo5b
2ob2o26b2o30b2o52b2o21bo17b2o$155b2o16bo3$9bo136b3o42b2o$9bo93b3o12b3o
25bo17b3o4b2o10b3o5bo$9b2o34b3o29b3o23bo14bo12b3o30bo6bo11bo$20b3o22b
o31bo53bo$5b3o12bobo$7bo2$53b2o28b2o$53bo30bo43$147bo9bo$146b2o9b2o3$
86bo12bo17bo7bo17bo17bo$85b2o12b2o15b2o7b2o15b2o17b2o3$114bo13bo$113b
2o13b2o$122b3o$95b3o24bobo24b3ob3o$95bobo24b3o24bobobobo$95b3o15b2o13b
2o19b3ob3o$114bo13bo13b2o17b2o$83b2o15b2o41bo17bo$84bo15bo$116b2o7b2o
$117bo7bo20b2o9b2o$147bo9bo9$276b3ob3o$275bo7bo$275bo7bo$261b3o11bo7b
o11b3o$261bobo12b3ob3o12bobo4$272bo13bo$269b2ob2o3b2ob2o3b2ob2o$269bo
7b2ob2o7bo5$271bo15bo$272bo13bo5$258bo41bo$257bobo15bo7bo15bobo$259bo
7b3o3b3o7b3o3b3o7bo!

Code: Select all

x = 189, y = 51, rule = B2en3i4a/S2-n3
180b2o$181bo5$174bo13bo$174b2o11b2o3$174bo13bo$174b2o11b2o3$55bo54bo21b
o20bo20bo13bo$54b2o54b2o19b2o19b2o20b2o11b2o$5bo7bo19bo$4b2o7b2o17b2o
49bo50b3o$60bo22b2o15b2o32bobo12bo11bo12bo5b3o5bo$3b2o27b2o18b2o6b2o13b
2o21bob2o32b3o11b2o4b3o4b2o11b2o4bobo4b2o$bob2o25bob2o16bob2o19bob2o20b
2o55bobo23b3o$2o27b2o18b2o21b2o64b2o14b3o$138bo35bo13bo$109b2o63b2o11b
2o$10b2o27b2o68bo38b2o$10bo28bo109bo11b2o$161bo12bo13bo$174b2o11b2o$102b
3o$5b3o26b3o17b3o20b3o22bobo52b2o$5bobo26bobo17bobo20bobo77bo16bo13bo
$174b2o11b2o3$174bo13bo$174b2o11b2o2$10bo$9b2o163bo13bo$5b2o167b2o11b
2o$3bob2o$2b2o3$12b2o$12bo168bo$180b2o3$7b3o$7bobo!

[pifricted]

Not very related to the topic, but:

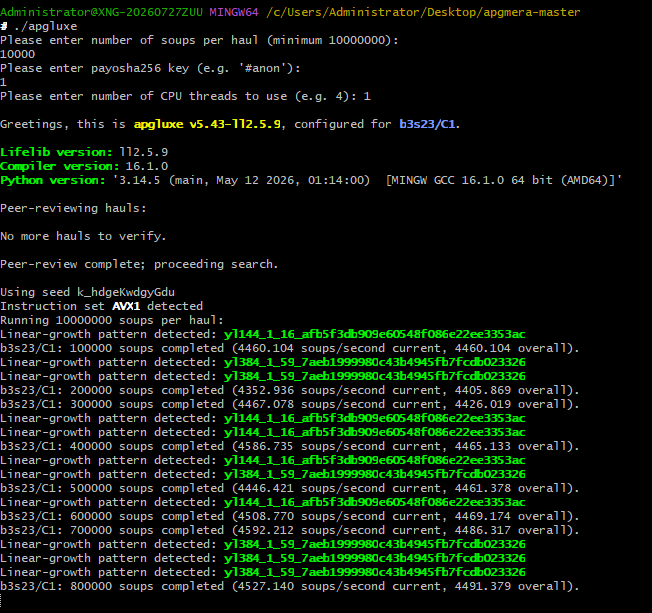

2026-09-27 125515.png (71.47 KiB) Viewed 149 times

apgsearch!

[pifricted]

First 10000 soup founds:
yl20_1_3_a9dba3ae62bb7b1b07796b35918dd325:

Code: Select all

x = 7, y = 7, rule = B2en3i4a/S2-n3
5bo$3obobo$obobobo$4bo$5bo$3b3o$4bo!

yl24_3_62_743a8af4e9ef4973574d8fd4a829c881:
(This is much cleaner)

Code: Select all

x = 41, y = 34, rule = B2en3i4a/S2-n3
20b3o$20bobob3o$20b3obobo$24b3o3$29bo$28b3o$12b3o6b2ob2o3bo$14bo6bobo
$18bo6bo2$15b2o7bobo7b3o$16bo7b3o7bo$8b3o8b2o$10bo9bo$20bo2$30b2o6b3o
$30bo7bo$4b3o$6bo$15b2o7b2o$16bo7bo2$22b2o$3o19bo$2bo$30b2o$30bo3$15b
2o7b2o$16bo7bo!

xq2_31f0o4o:
(extendable)

Code: Select all

x = 7, y = 5, rule = B2en3i4a/S2-n3
bo$obo$ob2o$2bob3o$4bobo!

Tiny p7:

Code: Select all

x = 4, y = 4, rule = B2en3i4a/S2-n3
o2bo$o2bo$o2bo$o2bo!

p2 s and p3 s.
Edit: p8, p10:

Code: Select all

x = 21, y = 9, rule = B2en3i4a/S2-n3
5b2o$6bo2$3b3o$3bobo5b2ob4ob2o$12bo6bo$2o$bo11bo4bo$13b2o2b2o!

[pifricted]

Code: Select all

x = 27, y = 23, rule = B3/S23
6$23bo$22bo$22b3o$10bobo$11b2o6bo$11bo8b2o$19b2o2$6bo$4bobo$5b2o$21b2o
$20bo2bo$14b2o5bobo$14bobo5bo$14bo!

xs33_g88blkcz121fgu2qr in 8G:

Code: Select all

x = 71, y = 25, rule = B3/S23
69bo$68bo$68b3o4$61b3o$55b2o$54bo2bo$19bo35bobo$18bo33b4obob2o$18b3o30b
o4bobobo$6bobo42b4obobo$7b2o6bo38bo2b2o$7bo8b2o33b2obo$15b2o34b2ob2o2$
2bo$obo$b2o$17b2o$16bo2bo$10b2o5bobo$10bobo5bo$10bo!

[pifricted]

WHAT?

Code: Select all

x = 165, y = 12, rule = 2PointShip_v2
.B19.B23.B25.B$2B18.2B22.2B24.2B16.B$2.A19.A23.A25.A14.2B19.B19.B17.B
16.B$89.A17.2B18.2B16.2B15.2B$109.A19.A17.A16.A2$49.B$50.A$4.B18.B46.
B59.B$4.A18.A45.A16.B22.B38.B11.B$85.A43.A28.A$108.A40.A!
@RULE 2PointShip_v2
@TABLE
n_states:3
neighborhood:Moore
symmetries:rotate4reflect
0 0,0,0,0,0,0,0,0 0
0 0,0,0,1,2,0,0,0 1
0 0,0,0,1,2,1,0,0 2
0 0,0,1,1,1,0,0,0 1
0 0,0,1,2,1,0,0,0 2
0 0,0,1,0,2,0,0,0 1
0 0,0,1,1,2,0,0,0 1
0 0,0,1,1,2,1,0,0 1
0 0,0,1,0,0,2,0,0 1
0 0,0,1,1,2,2,0,0 1
0 0,0,2,0,0,1,0,0 1
0 0,0,2,0,1,1,0,0 1
0 0,0,2,0,2,1,0,0 1
0 0,0,2,2,0,2,0,0 1
1 0,0,0,2,0,0,0,0 1
1 0,0,0,0,1,0,0,0 1
1 0,0,0,2,1,0,0,0 1
1 0,0,0,0,2,0,0,0 2
1 0,0,0,2,0,2,0,0 1
1 0,0,1,0,1,0,0,0 2
1 0,0,1,2,1,0,0,0 1
1 0,0,1,0,0,2,0,0 1
1 0,0,2,0,2,0,0,0 1
2 0,0,0,0,0,0,0,0 2
2 0,0,0,1,0,0,0,0 2
2 0,0,0,2,0,0,0,0 2
2 0,0,0,0,1,0,0,0 2
2 0,0,0,1,1,0,0,0 2
2 0,0,0,0,2,0,0,0 2
2 0,0,0,1,2,0,0,0 2
2 0,0,0,2,2,0,0,0 2
2 0,0,0,1,0,1,0,0 2
2 0,0,0,1,2,1,0,0 1
2 0,0,1,1,1,0,0,0 2
2 0,0,1,2,1,0,0,0 2
2 0,0,1,1,0,1,0,0 2
2 0,0,2,0,2,0,0,0 2
2 0,0,2,0,0,1,0,0 2
2 0,0,2,0,1,1,0,0 2
2 0,0,2,0,0,2,0,0 2
2 0,0,2,0,1,2,0,0 2
0 0,0,2,0,0,0,1,0 1
1 0,0,1,2,1,0,1,0 1
2 0,0,1,1,0,0,1,0 2
2 0,0,1,0,1,0,1,0 2
2 0,0,2,0,0,0,1,0 2
2 0,0,2,1,0,0,1,0 2
2 0,0,2,0,0,2,1,0 2
2 0,0,2,0,0,0,2,0 2
0 0,1,0,0,0,2,0,0 1
0 0,1,1,0,1,2,0,0 2
1 0,1,0,0,0,2,0,0 1
1 0,1,0,2,0,2,0,0 2
2 0,1,0,0,0,2,0,0 2
2 0,1,1,0,0,2,0,0 1
0 0,1,2,0,1,0,1,0 1
2 0,1,1,0,0,2,1,0 2
2 0,1,0,1,1,0,2,0 2
2 0,1,0,0,2,0,2,0 2
2 0,2,0,0,0,2,0,0 2
0 0,2,0,2,0,0,1,0 1
0 0,2,0,0,1,1,1,0 1
1 0,2,0,0,1,2,1,0 2
2 0,2,0,0,1,0,1,0 2
2 0,2,0,0,1,1,1,0 2
2 0,2,0,0,1,2,1,0 2
var a1={0,1,2}
var a2=a1
var a3=a1
var a4=a1
var a5=a1
var a6=a1
var a7=a1
var a8=a1
var a9=a1
a1 a2,a3,a4,a5,a6,a7,a8,a9 0

[pifricted]

Weird spaceship:

Code: Select all

x = 20, y = 20, rule = 2PointShip_v4a
B$.B$2.B$3.B$4.B$5.B$6.B$7.B$8.B$9.B$10.B$11.B$12.B$13.B$14.B$15.B$16.
B$17.B$18.B$19.A!
@RULE 2PointShip_v4a
@TABLE
n_states:3
neighborhood:Moore
symmetries:rotate4reflect
0 0,0,0,0,0,0,0,0 0
0 0,0,0,1,2,0,0,0 1
0 0,0,0,1,2,1,0,0 2
0 0,0,1,1,1,0,0,0 1
0 0,0,1,2,1,0,0,0 2
0 0,0,1,0,2,0,0,0 1
0 0,0,1,1,2,0,0,0 1
0 0,0,1,1,2,1,0,0 1
0 0,0,1,0,0,2,0,0 1
0 0,0,1,1,2,2,0,0 1
0 0,0,2,0,0,1,0,0 1
0 0,0,2,0,1,1,0,0 1
0 0,0,2,0,2,1,0,0 1
0 0,0,2,2,0,2,0,0 1
1 0,0,0,2,0,0,0,0 1
1 0,0,0,0,1,0,0,0 1
1 0,0,0,2,1,0,0,0 1
1 0,0,0,0,2,0,0,0 2
1 0,0,0,2,0,2,0,0 1
1 0,0,1,0,1,0,0,0 2
1 0,0,1,2,1,0,0,0 1
1 0,0,1,0,0,2,0,0 1
2 0,0,0,0,0,0,0,0 2
2 0,0,0,1,0,0,0,0 2
2 0,0,0,2,0,0,0,0 2
2 0,0,0,0,1,0,0,0 2
2 0,0,0,1,1,0,0,0 2
2 0,0,0,0,2,0,0,0 2
2 0,0,0,2,2,0,0,0 2
2 0,0,0,1,0,1,0,0 2
2 0,0,0,1,2,1,0,0 1
2 0,0,0,2,0,2,0,0 2
2 0,0,0,2,2,2,0,0 2
2 0,0,1,1,1,0,0,0 2
2 0,0,1,2,1,0,0,0 2
2 0,0,1,1,0,1,0,0 2
2 0,0,2,0,2,0,0,0 2
2 0,0,2,2,2,0,0,0 2
2 0,0,2,0,0,1,0,0 2
2 0,0,2,2,0,2,0,0 2
2 0,0,2,0,2,2,0,0 2
0 0,0,2,0,0,0,1,0 1
1 0,0,1,2,1,0,1,0 1
2 0,0,1,1,0,0,1,0 2
2 0,0,1,0,1,0,1,0 2
2 0,0,2,0,0,0,1,0 2
2 0,0,2,1,0,0,1,0 2
0 0,0,2,1,0,0,2,0 1
2 0,0,2,0,0,0,2,0 2
2 0,0,2,2,0,0,2,0 2
2 0,0,2,0,2,0,2,0 2
0 0,1,0,2,0,1,0,0 1
0 0,1,0,0,0,2,0,0 1
1 0,1,0,0,0,2,0,0 1
2 0,1,0,0,0,2,0,0 2
2 0,1,1,2,1,1,0,0 1
0 0,1,2,0,1,0,1,0 1
0 0,1,2,0,2,0,2,0 1
2 0,1,0,1,1,0,2,0 2
2 0,1,0,0,2,0,2,0 2
2 0,1,0,0,2,2,2,0 2
0 0,2,0,0,0,2,0,0 1
0 0,2,0,2,0,2,0,0 2
1 0,2,1,2,1,2,0,0 1
2 0,2,0,0,0,2,0,0 2
2 0,2,0,2,0,2,0,0 2
2 0,2,0,0,2,2,0,0 2
2 0,2,1,2,1,2,0,0 1
0 0,2,0,2,0,0,1,0 1
0 0,2,0,0,1,1,1,0 1
1 0,2,0,0,1,2,1,0 2
2 0,2,0,0,1,0,1,0 2
2 0,2,0,0,1,1,1,0 2
2 0,2,0,0,1,2,1,0 2
0 0,2,0,0,2,0,2,0 1
2 0,2,0,2,0,0,2,0 2
2 0,2,0,0,2,0,2,0 2
2 0,2,0,0,2,1,2,0 1
2 1,1,1,0,1,2,1,0 2
0 0,1,0,2,0,1,0,1 1
0 0,2,0,1,0,2,0,1 1
2 0,2,0,2,0,2,0,1 2
2 0,2,0,1,1,2,1,1 2
0 0,2,1,2,1,2,0,2 1
2 0,2,0,2,0,2,0,2 2
var a1={0,1,2}
var a2=a1
var a3=a1
var a4=a1
var a5=a1
var a6=a1
var a7=a1
var a8=a1
var a9=a1
a1 a2,a3,a4,a5,a6,a7,a8,a9 0

I don't know whether these diagonal stuffs are good for the golf.
